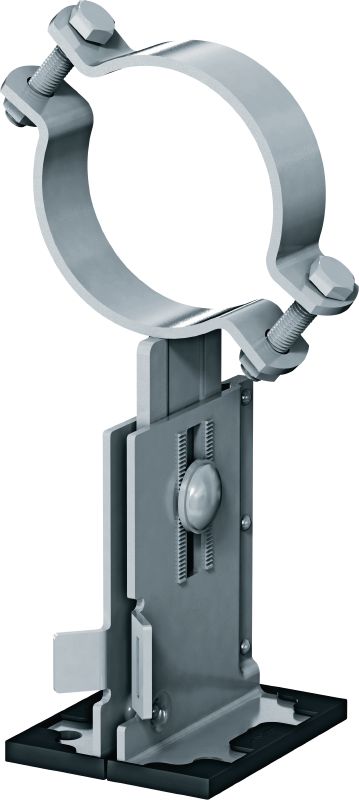

Outdoor coated (OC) pipe shoe with height and slope adjustability for heavy industrial applications with outer pipe diameters of 21-173 mm (1/2" to 6")

  • Fire resistance (yes/no): No
  • Temperature resistance: -20 - 300 °C
  • Material composition: Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8

Choose options

Clamping range - D
  • 21 - 26 mm
  • 26 - 31 mm
  • 32 - 37 mm
  • 45 - 51 mm
  • 59 - 65 mm
  • 88 - 94 mm
  • 110 - 118 mm
  • 136 - 144 mm
  • 163 - 173 mm
Height above ground to base of pipe
  • 88.5 - 116 mm
  • 116 - 171 mm
  • 171 - 223.5 mm
Nominal pipe size (imperial)
  • 1/2 in
  • 3/4 in
  • 1 in
  • 1-1/2 in
  • 2 in
  • 3 in
  • 4 in
  • 5 in
  • 6 in
Nominal pipe size
  • 15 mm
  • 20 mm
  • 25 mm
  • 40 mm
  • 50 mm
  • 80 mm
  • 100 mm
  • 125 mm
  • 150 mm
Pack size
  • 4 pc
  • 8 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SGD 347.60

Technical Data

Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Base-plate: S280GD / Modif POSMAC-C, Bows: S235JR - DIN EN 10025, Middle-plate: S235JR - DIN EN 10025, Sliding-plate: PA66 + GF30, Bolt: Steel grade 8.8, Nut: Steel grade 8
Material thickness
base-plate: 4mm, Middle-plate: 7mm, Sliding-plate: 3mm, Serrated washer: 4mm
Surface finish
Outdoor Coated - HDG
Hot-dip galvanized
Yes
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Concrete, Steel, Modular Support
Wrench size
19 mm
Tightening torque for height adjustment
50 Nm
Length
0 m

Documents

Features & Applications

Features

  • One-for-all versatility – use the same pipe shoe system for fix-, slide-, guided- or freestanding supports to Hilti modular girders, steel beams and concrete
  • Extensive software support – simplify calculation by using PROFIS, Hilti FixPoint Calculator, BIM/CAD libraries and various plug-ins
  • Load data and documentation available – design according to EN13480-3, Eurocode 3 and MSS-SP58 guidelines for pipe support components
  • Quicker installation on-site – easily adjust the height and slope after fastening the pipe shoe in place
  • Wider clamping range – suitable for various different pipes with or without additional inlays

Applications

  • Fastening pipes to steel beams, concrete or Hilti modular support girders
  • Pipe installations in onshore industrial, power generation, pharmaceutical, electronics or automotive manufacturing facilities
  • Suitable for application temperatures of up to 300 °C and an insulation thickness of up to 220 mm
  • Recommended for use in Indoor or Outdoor with low to moderate pollution (C3)

For approval or certificate information, please see individual items.
