Fire resistance (yes/no): No
Temperature resistance: -20 - 300 °C

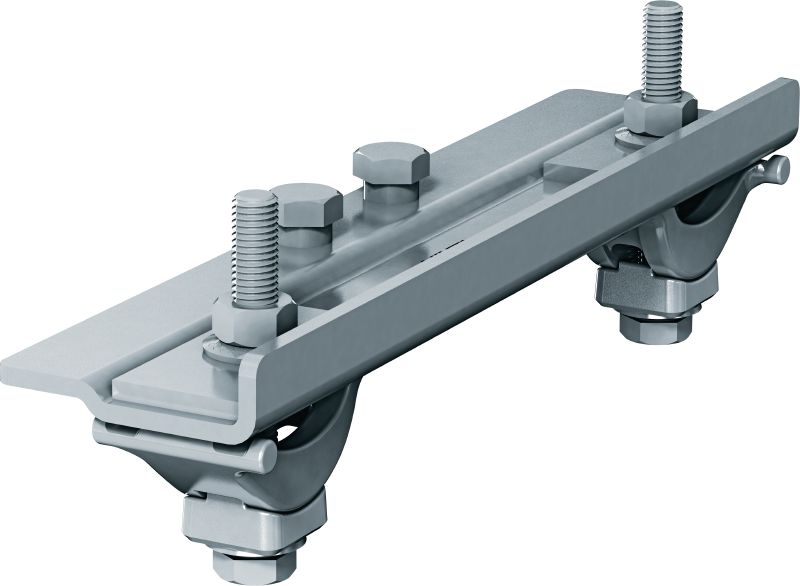

Material composition: Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3

Technical Data

Fire resistance (yes/no)

Temperature resistance

-20 - 300 °C

Material composition

Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3, Cylindrical washers: Stainless Steel X5CrNi18-10 per EN10088-3

Material thickness

All sheet metal parts: 5mm

Surface finish

Beam clamps and rectangular washer: DIN EN ISO 1461, baseplate: ZM300, bolts/nuts: ISO 10684, Retaining washers: ISO 10683, Cylindrical washer: Stainless Steel

Hot-dip galvanized

Yes

Environmental conditions

Outdoor, low to moderate pollution (C3 / C4 - low)

Base material type

Modular Support

Wrench size

19 mm

Steel beam thickness

3 - 36 mm

Steel beam thickness min.

3 mm
