  • Fire resistance (yes/no): No
  • Temperature resistance: -20 - 300 °C

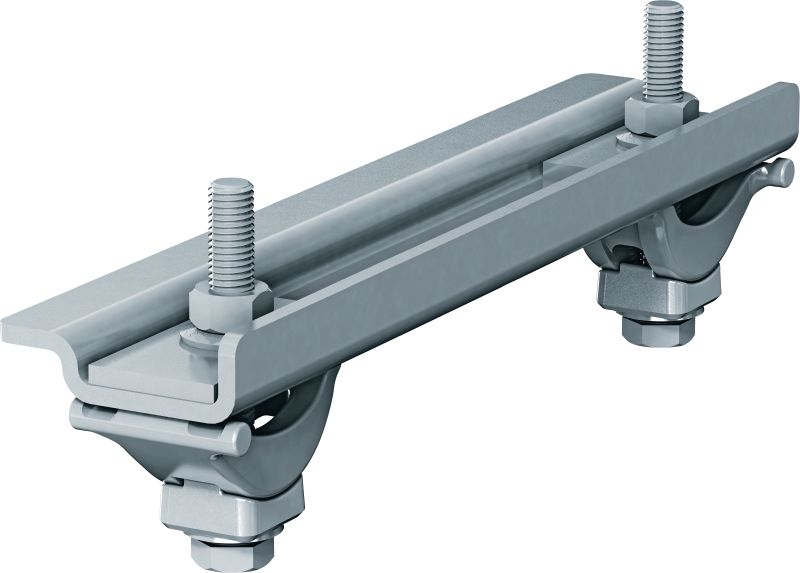

  • Material composition: Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3

Technical Data

08_IS_MP-PS ISG_0001 (2299288)
09_IS_MP-PS ISG_Beam_0001 (2299289)
Fire resistance (yes/no)
No
Temperature resistance
-20 - 300 °C
Material composition
Beam Clamps (Clamping Claw + Saddle): Cast Iron per DIN EN1562, Baseplate: S280GD per EN10346, Rectangular washer: S235JR – Yield280 per HN 707, Bolts: F Class 8.8 per ISO 898-1, Nuts: Grade 8 per ISO 898-2, Retaining Washer: C60E per EN10132-3
Material thickness
All sheet metal parts: 5mm
Surface finish
Beam clamps and rectangular washer: DIN EN ISO 1461, baseplate: ZM300, bolts/nuts: ISO 10684, Retaining washers: ISO 10683, Cylindrical washer: Stainless Steel
Stainless steel
No
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Base material type
Modular Support
Wrench size
19 mm
Steel beam thickness
3 - 36 mm
Steel beam thickness min.
3 mm
Steel beam thickness min. (conversion inch fractional)
1/8 in
Steel beam thickness max.
36 mm
Steel beam thickness max. (conversion inch fractional)
1-7/16 in
