Analysis of Bolts passing through the Base Material

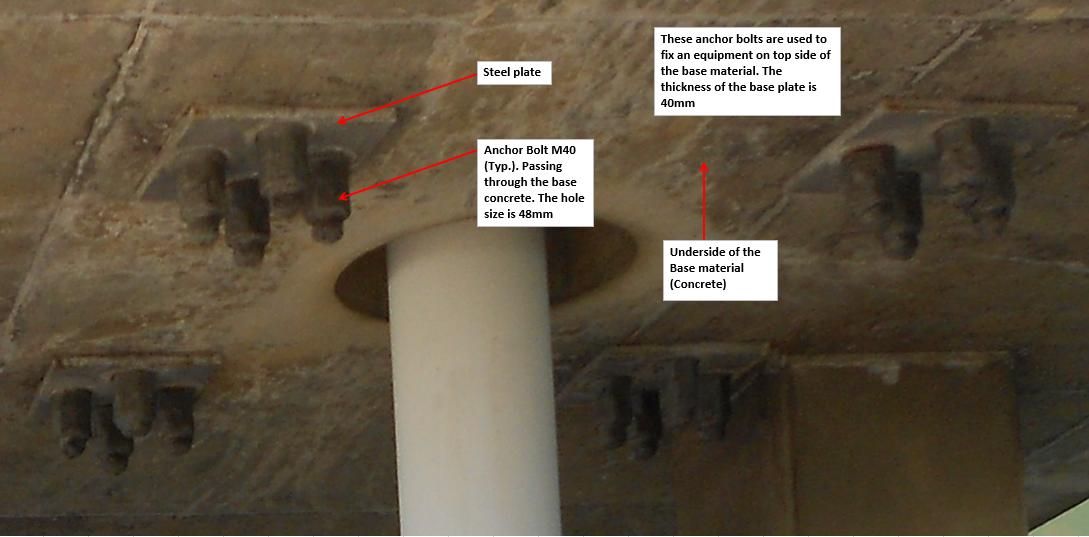

Please find attached the image showing the bolt arrangement. Is it possible to analyze this type of bolt arrangement in Hilti Profis. Also is there any suggestion on the filler to be used between the anchor bolt and the hole.
1 Reply
Posted by Karan Khannaabout 4 years ago
Hi Prashanth,
For through Base material cases, we provide only the steel calculations for the threaded rods while the concrete calculations to be done by structural engineer himself.
To fill the gap, you can either use Nut Washer or epoxy chemical.
You can request for a detailed design for anchors by clicking here.
Regards,
Team Ask Hilti SEA
