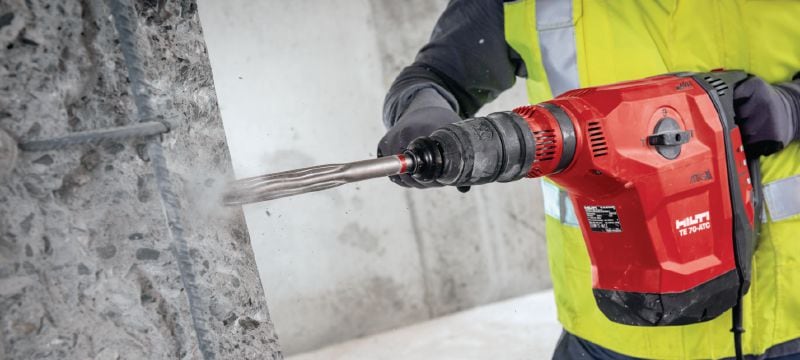

TE 70-ATC/AVR Rotary hammer

Very powerful SDS Max (TE-Y) rotary hammer for heavy-duty drilling and chiselling in concrete

  • Weight according to EPTA-Procedure 01/2003 without battery: 10 kg
  • Weight class: 7 kg
  • Single impact energy: 14.5 J

Customers also searched for drillingsds Maxcombicombi hammer or drilling machine.

Technical Data

Weight according to EPTA-Procedure 01/2003 without battery
10 kg
Weight class
7 kg
Single impact energy
14.5 J
Hammer drilling diameter range
12 - 150 mm
Optimum hammer drilling range
20 - 55 mm
Hammer drilling RPM
245 rpm
Full hammering frequency
2830 impacts/minute
Functionality
Active Torque Control (ATC), Chiselling, Power reduction, Active Vibration Reduction (AVR)
Triaxial vibration value for hammer drilling into concrete (ah,HD)
8.6 m/s² 1
Dust removal system available
TE DRS-Y, TE DRS-D
Triaxial vibration for chiselling in concrete
7.8 m/s² 2
Rated input power
2100 W
A-weighted emission sound power level
113 dB (A) 3
A-weighted emission sound pressure level
103 dB (A) 4
  1. According to the applicable product standard (see the Operating Instruction for more details)
  2. According to the applicable product standard (see the Operating Instruction for more details)
  3. According to the applicable product standard (see the Operating Instruction for more details)
  4. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

  • Active Torque Control (ATC) stops the tool body from spinning uncontrollably if the drill bit jams – helping to reduce a common safety hazard
  • Active Vibration Reduction (AVR) makes the tool less tiring to use – helping to increase daily productivity
  • Virtually maintenance-free brushless SR motor and double-chamber lubrication systems for longer service intervals and tool lifetime
  • Optional DRS-Y dust removal system collects up to 95% of dust
  • Detachable supply cord for quicker and easier replacement of damaged/broken cords on the jobsite

Applications

  • Hammer drilling in concrete, masonry and natural stone with drill bits 12 - 150 mm in diameter
  • Drilling holes for heavy-duty anchors from 20-40 mm in diameter
  • Breaching and demolition with pointed and flat chisels
  • Hammer drilling in concrete, masonry and natural stone with drill bits 1/2" - 6" in diameter
  • Drilling holes for heavy-duty anchors from 3/4" - 1-3/4" in diameter

For approval or certificate information, please see individual items.

Services

Hilti Tool Service

  • Servicing is free of charge for up to 2 years, including wear and tear, pick-up and delivery
  • Product warranty against parts and manufacturing irregularities for 20 years
  • After 2 years repair costs are capped
  • 1-month no-cost period after each paid repair
  • Exclusive use of genuine Hilti spare parts
More information about Tool Services

Fleet Management

  • Monthly usage fee covering all tool, service and repair costs helping to ensure absolute cost control and back-office efficiency.
  • High-performing tools and latest technology help to increase jobsite productivity.
  • Loan tools during repair to reduce downtime.
  • Temporary tools for peak times and special applications help to reduce investments.
  • Theft coverage helps to reduce financial risk and unexpected expenses.
More information about Fleet Management
