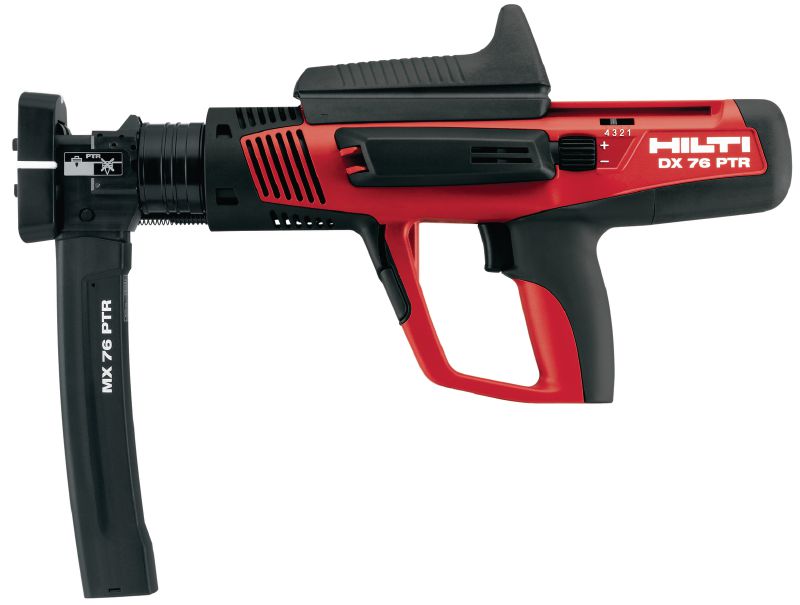

DX 76 PTR Powder-actuated tool

Name: DX 76 PTR Powder-actuated tool
Brand: Hilti
SKU: r28936

Semi-automatic, high-productivity, powder-actuated nailer for fastening metal decks

Technical Data

Dimensions (LxWxH)

464 x 104 x 352 mm

Weight

4.37 kg

Fastener length range

19 - 21 mm

Automatic piston return

Bluetooth

Hilti Connect

Power (max.)

563 J

Power regulation

Yes

Piston type

X-76-P-ENP-PTR

PTR also helps to deliver excellent fastening quality even on thin materials with a thickness of 3 mm or greater

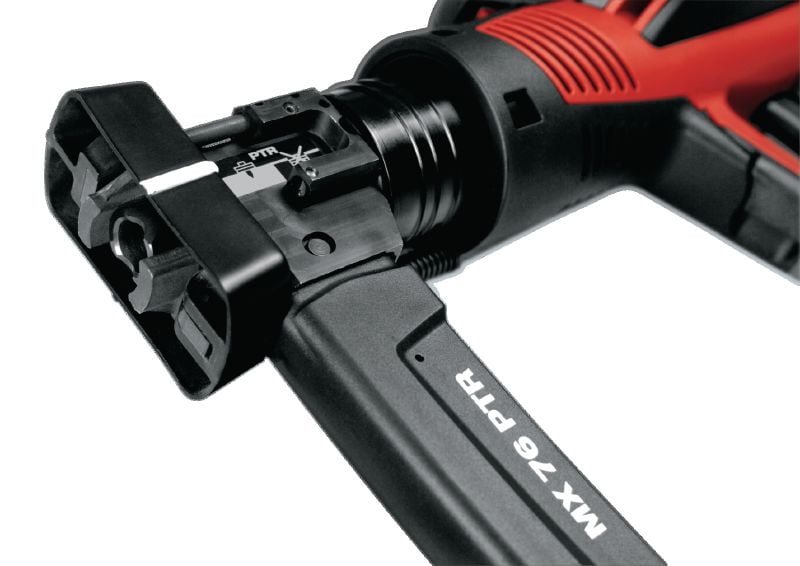

Fastener magazine and rugged design for more reliable, efficient and quicker operation
Drives fasteners at the average rate of 600 per hour
Easy assembly and disassembly for on-the-spot maintenance – no tools required
Advanced ergonomic design

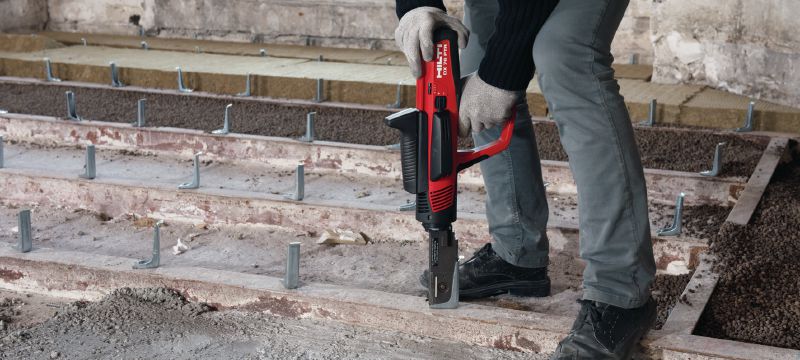

Fastening composite metal decks to steel structures with a minimum thickness of 3 mm (1/4") for composite decking

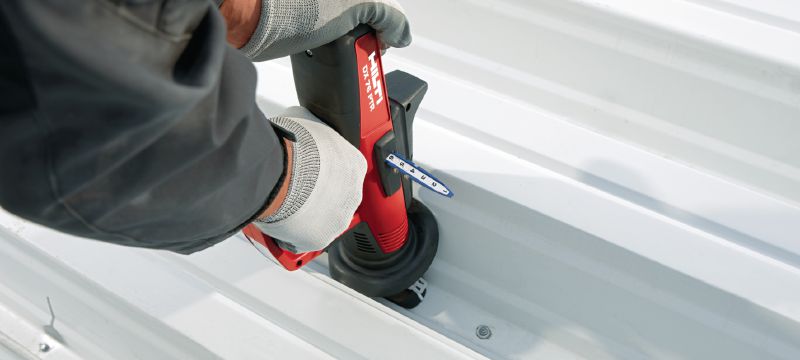

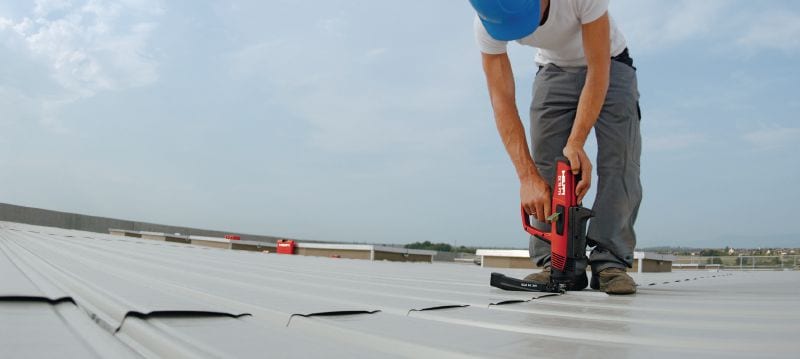

Fastening metal roof decks to steel structures with a minimum thickness of 6 mm (1/4") for roofing

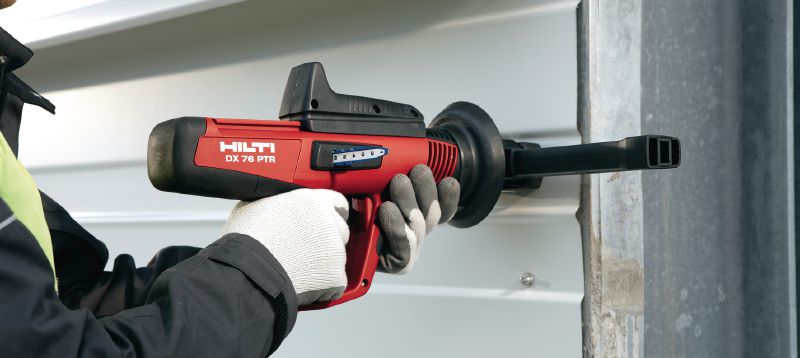

Fastening liner trays to steel structures with a minimum thickness of 6 mm (1/4") for siding
Fastening grating elements to steel structures using grating accessories
Fastening shear connectors on steel structures with HVB accessories

For approval or certificate information, please see individual items.
