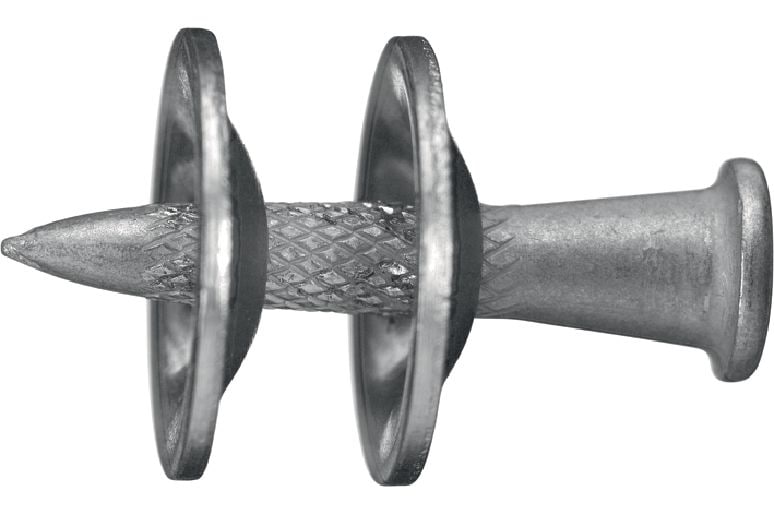

X-ENP2K MX Metal deck fasteners (collated)
Collated nails for fastening metal decks to light steel structures with powder-actuated nailers
- Base materials: Steel
- Minimum thickness of base material (steel): 3 mm
- Corrosion protection: Galvanised zinc coated <20 µm
ultimate
Technical Data
Base materials
Steel
Minimum thickness of base material (steel)
3 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.7 mm
Washer size
15 mm, 15 mm
Point type
Ballistic point
Approvals
ABS, BUtgb, ETA, ITB, LR, Rom
For use with (tools)
DX 76
Product class
Ultimate
Documents
Features & Applications
Features
- A much faster and safer fastening system compared to welding
- Suitable for 3-6 mm thick steel base materials
- Easy visual check of fastening quality with the help of nail stand-off gauges
- Suitable for steel strengths S235-S355
- Forms a system with the Hilti DX 76 PTR for optimum fastening on HTU cast-in channels, steel beams and other supports with a thickness of 3-6 mm
Applications
- Fastening siding, roofing and decking metal sheet profiles to light-gauge steel structures and HTU rails with thickness 3-6 mm
For approval or certificate information, please see individual items.
