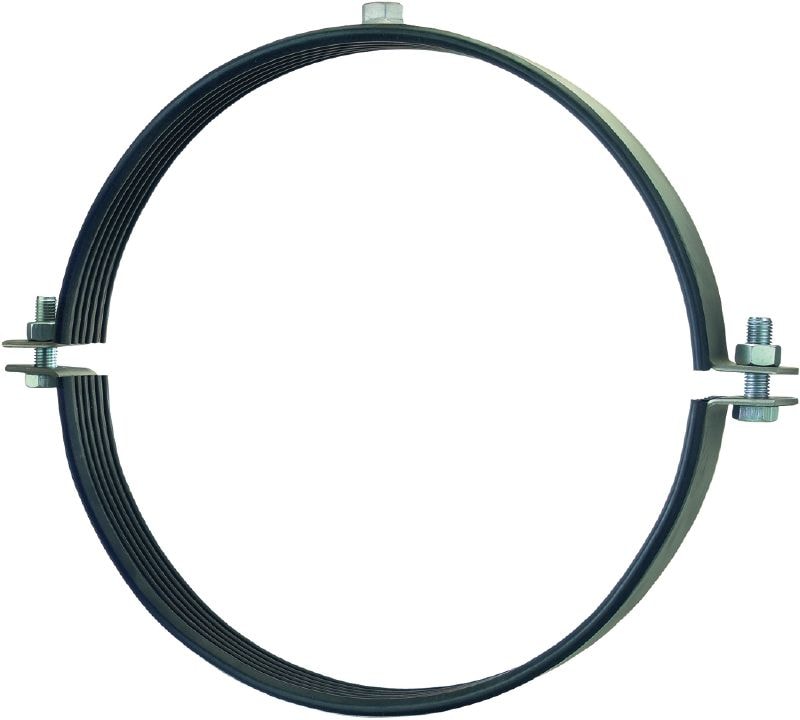

Stainless steel (A4) pipe clamp with sound insulation for extra heavy-duty applications

  • Noise reduction: 16 dB (A)
  • Temperature resistance: -50 - 120 °C
  • Material composition: Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
premium

Technical Data

60290_S21.eps
Noise reduction
16 dB (A)
Temperature resistance
-50 - 120 °C
Material composition
Stainless steel, 1.4571/1.4404 (A4) - EN 10088, AISI 316Ti / AISI 316L
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)
Insulation material
EPDM rubber
Hardness insulation material
50° ±5° Shore A
Product class
Premium

Documents

Features & Applications

Features

  • Solid connection head, welded all around
  • Strong clamping screws for high load values
  • Non-slip, pre-fitted profiled rubber inlay
  • Suitable for installing pipes under dynamic loading if used with vibration-damping components
  • High resistance to corrosion (A4 stainless steel)

Applications

  • heavy-duty pipe installations up to 508 mm
  • Installing industrial pipes
  • Mounting pipes in food industry (except production) and in water treatment
  • heavy-duty plumbing and heating applications

For approval or certificate information, please see individual items.
