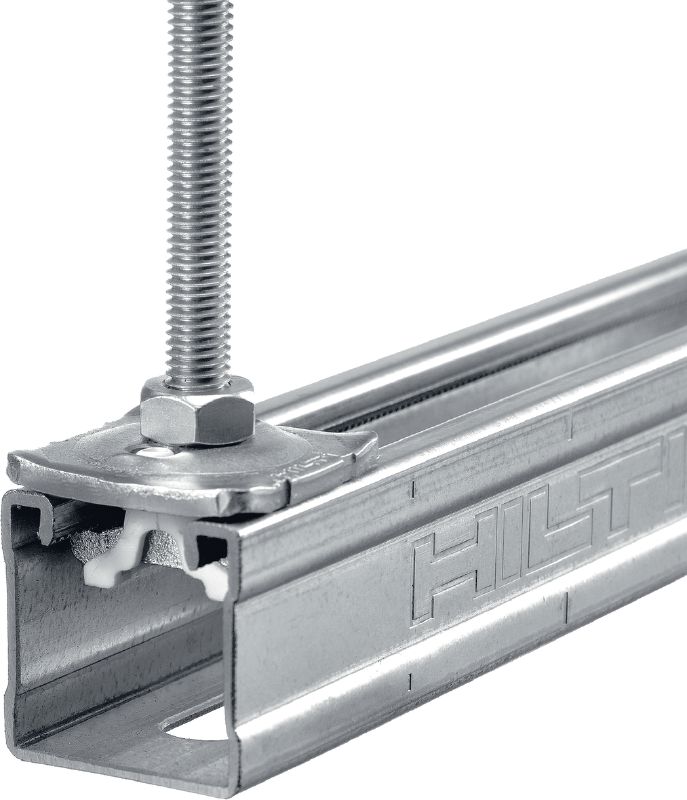

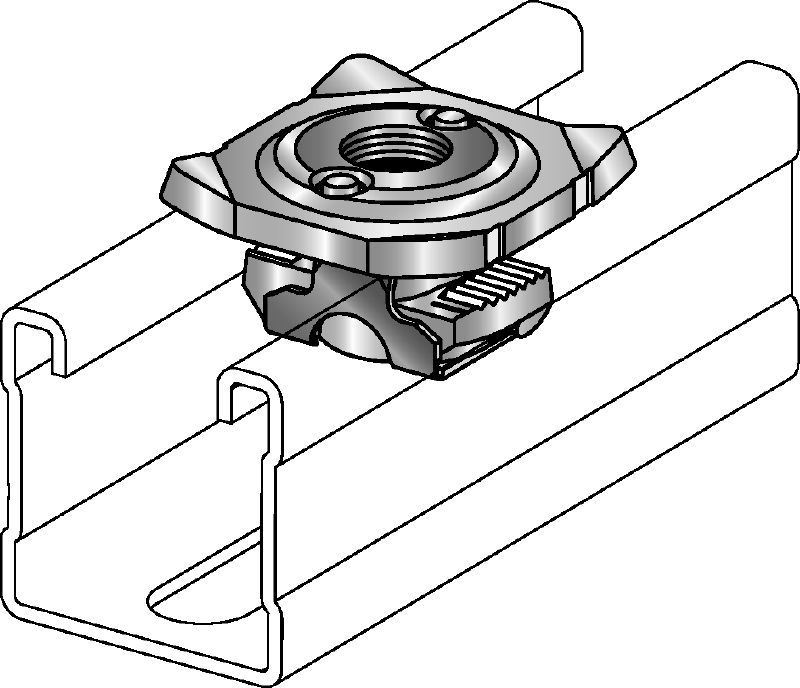

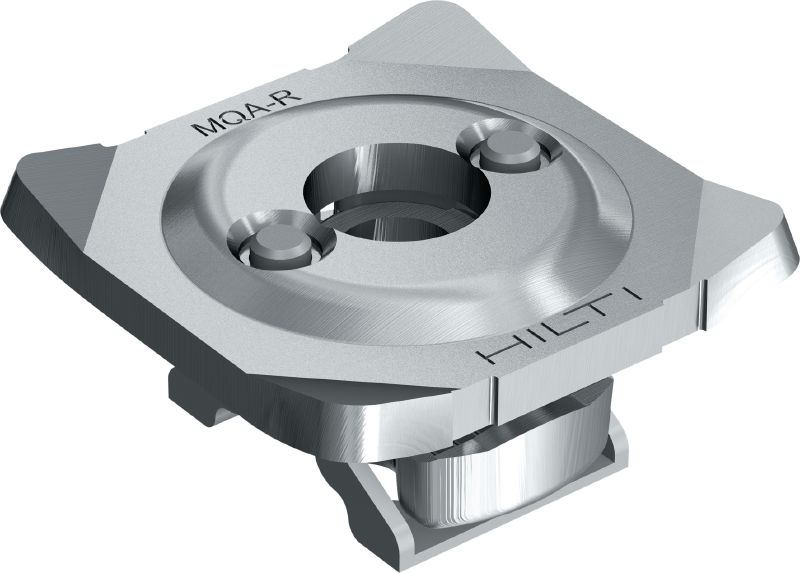

Stainless steel pipe clamp saddle for connecting threaded components to MQ strut channels

  • Material composition: Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
  • Surface finish: Outdoor Plus - Stainless Steel
  • Environmental conditions: Outdoor high pollution (C4 – high / C5)

Choose options

Thread connection - M
  • M8
  • M10
Pack size
  • 25 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SGD 465.00

Technical Data

14676.eps
Material composition
Nut: 1.4581 (A4) - DIN EN 10283, Plate: 1.4404 (A4) – EN 10088, AISI 316L, Plastic: PB
Surface finish
Outdoor Plus - Stainless Steel
Environmental conditions
Outdoor high pollution (C4 – high / C5)

Documents

Features & Applications

Features

  • Quick connection of threaded components to the open side of MQ strut channels
  • Easy installation and positioning within MQ strut channel openings
  • Single, compact part – for higher productivity and flexibility
  • Various thread sizes available
  • Moveable

Applications

  • Fastening pipes and air ducts
  • Fastening cable trays and cable baskets
  • Recommended for use in corrosive environments
  • For metric threads

For approval or certificate information, please see individual items.
