new special

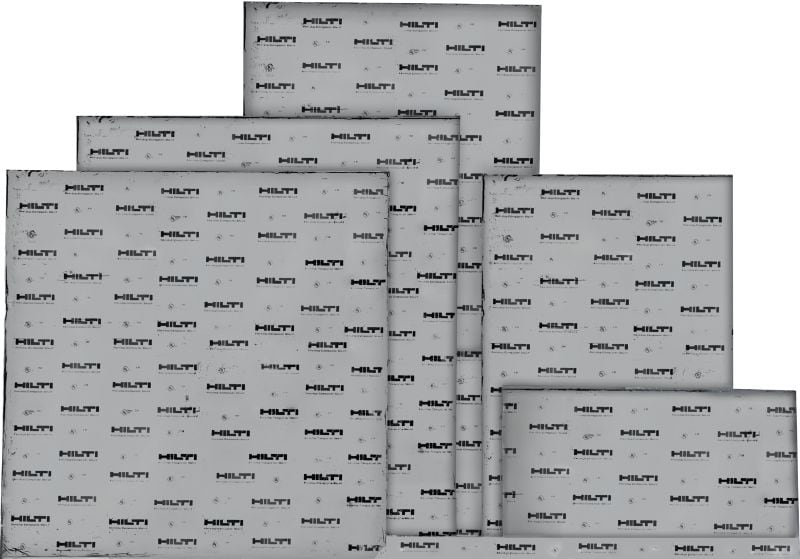

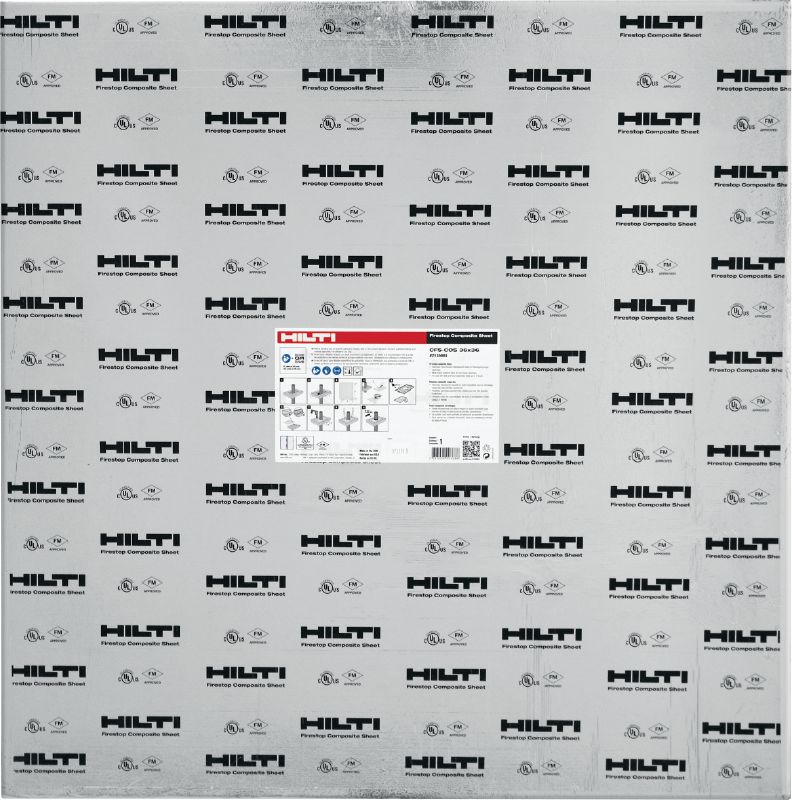

CFS-COS Firestop composite sheet

Thin stainless steel firestop composite sheet ideal for sealing large openings

ultimate

Dimension (L x W)

Pack size

Product options

Quantity

Packs

Total Pieces

You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SGD 665.50

Technical Data

Base materials

Concrete, Concrete over metal deck, Concrete block, Drywall

Application temperature range

-30 - 48 °C

Storage and transportation temperature range

-30 - 48 °C

Temperature resistance range

-30 - 121 °C

Material composition

Stainless Steel #304

Surface burning characteristics UL 723 (ASTM E84)

Flame spread: 5<BR>Smoke development: 20

Shelf life

Not relevant ¹

Intumescent

Yes

Product class

Ultimate

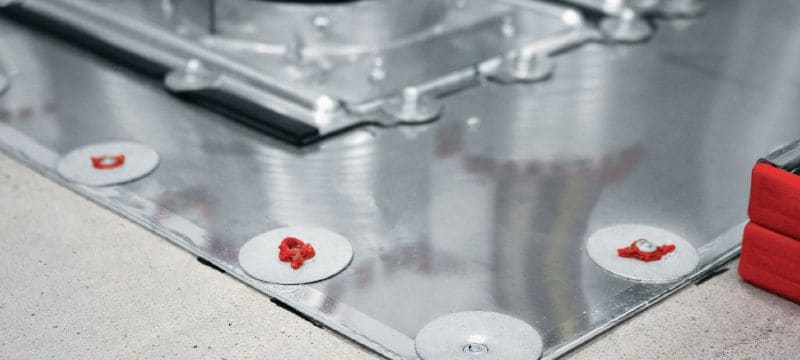

Tested with Hilti GX nailers for fast attachment to base material – no anchors needed

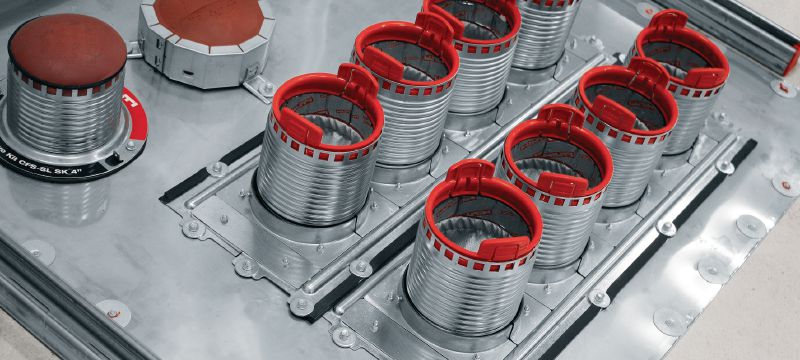

Compatible with cable management devices for medium- and low-voltage applications

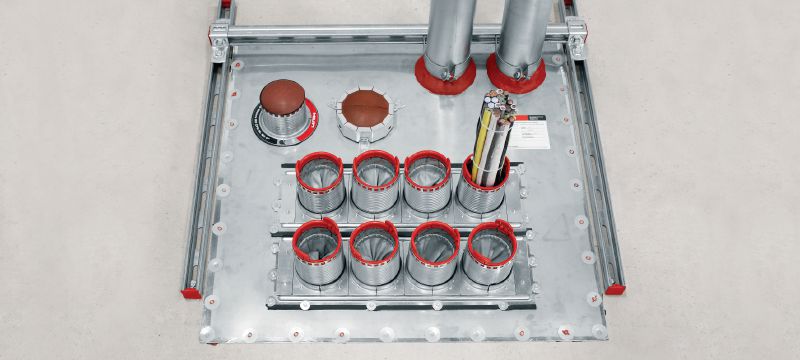

Labour saver – pre-cut holes for electrical riser applications
Tested for up to 4 hours of fire resistance according to ASTM E814/UL1479
Non-magnetic #304 stainless steel backing helps to improve weatherability and no inductive loss in cables
