Single Anchor Bolt Design

Question

Posted by Kumaraover 1 year ago

I have an anchor bolt design to connect a lightweight tank with only one anchor bolt on each leg support.
Can this single anchor bolt with baseplate design been check using HILTI PROFIS Software?

anchor bolt,single anchor design

1 Reply

Posted by Hilti Employee (chonray)over 1 year ago

Hi Kumara,

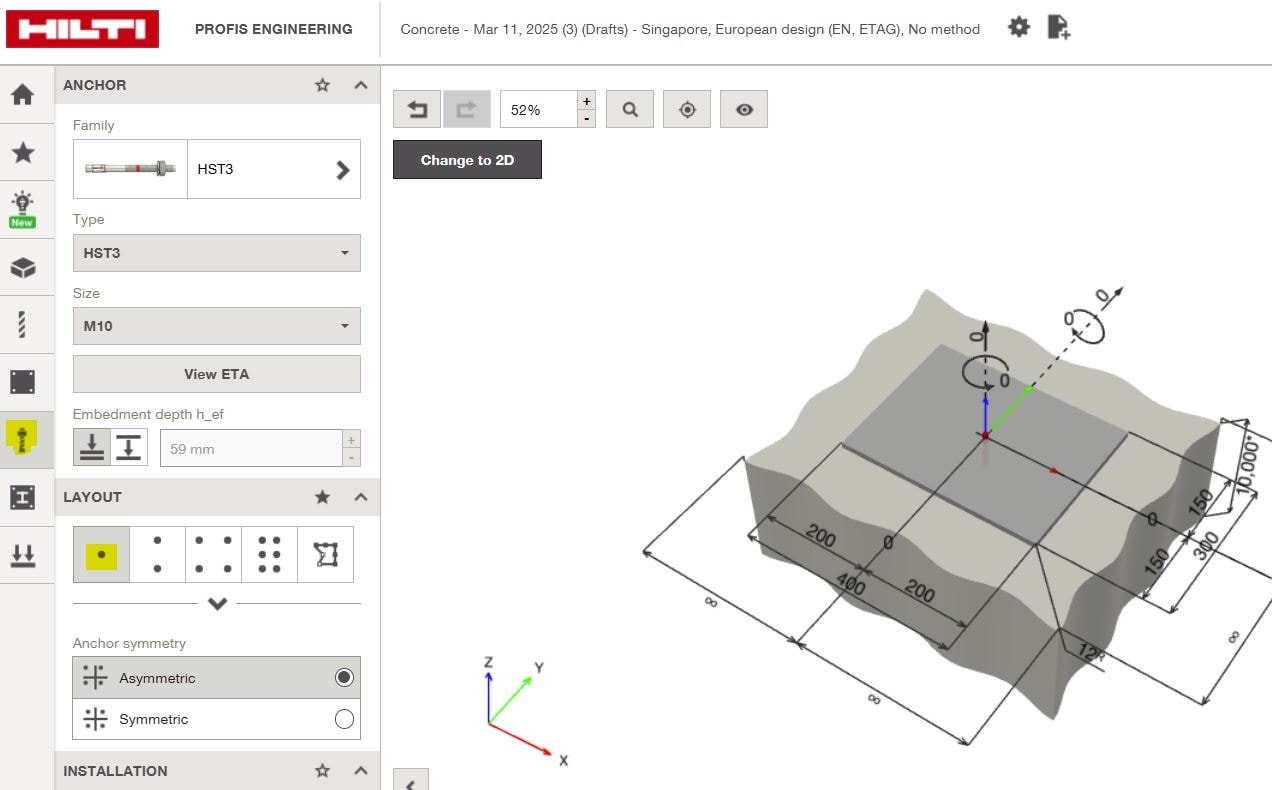

It is possible to design 1 anchor per baseplate with Profis Engineering. You can do this in anchor layout tab and select the pre-defined layout of 1 anchor. Please refer to the attachment.

Capture.JPG80.22 KB
