ACI reference for Profis Simulation : M20 Minimum distance of 33 mm from baseplate

Posted by agra gautamaover 4 years ago
ACI reference for Profis Simulation : M20 Minimum distance of 33 mm from baseplate

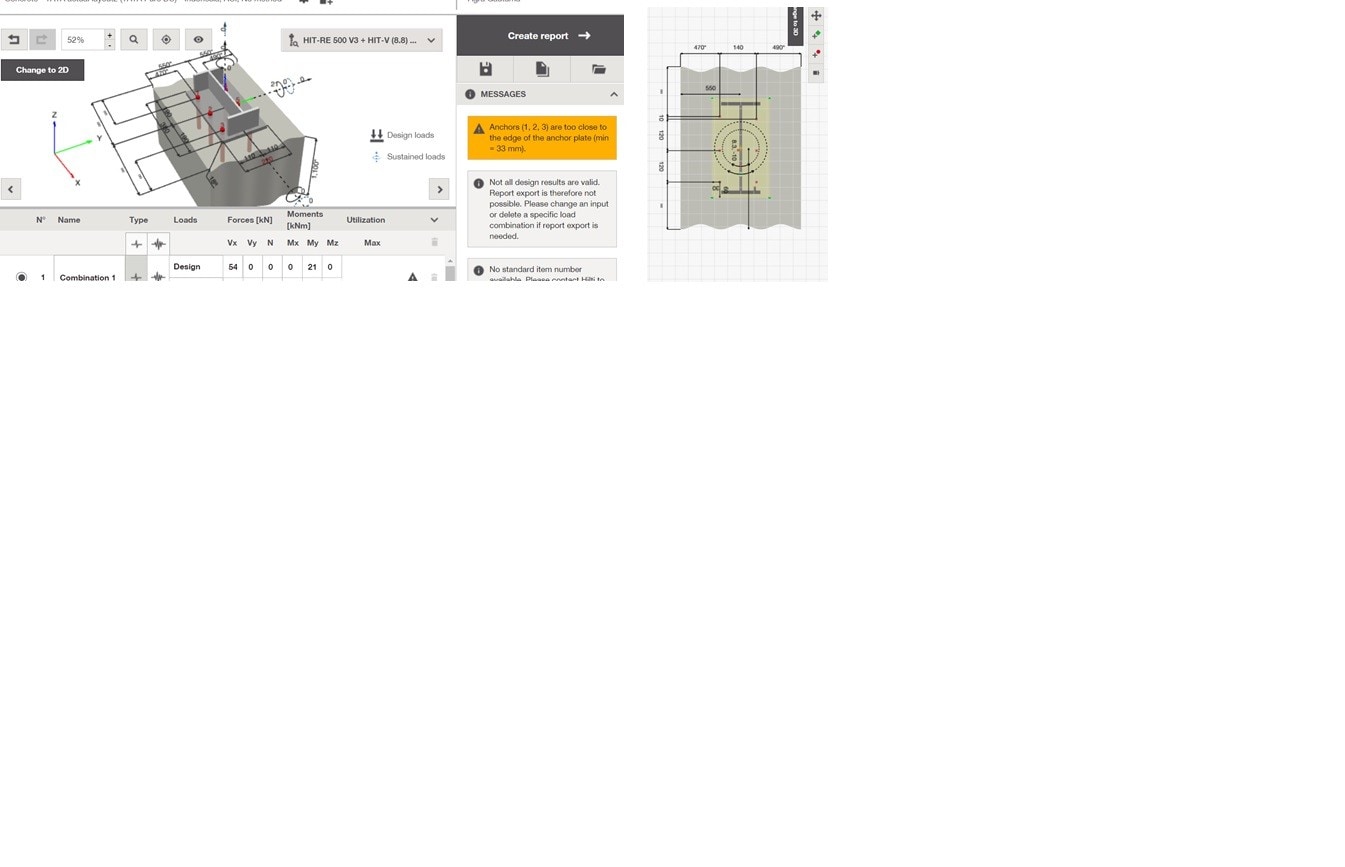

Hi, is there any ACI/ETA reference for the profis engineering simulation which limit us to design anchor (in this case my pic is M20, we have to put the anchor 33 mm from the edge of baseplate) , if in case i want to design beyond the limitation can i use profis?

Profis Engineering,ACI318-14,anchor rod,HIT-RE 500 V3
Software & Services file 0
Edge to baseplate.jpg82.8 KB
1 Reply
Posted by Karan Khannaover 4 years ago

Hi Agra,

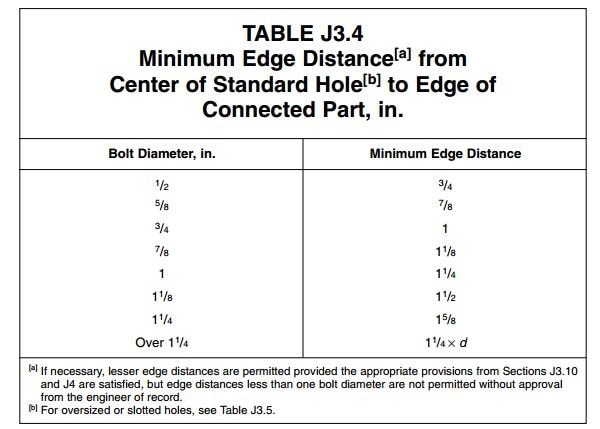

The edge distance of the center of the anchor to the edge of the base plate is defined in steel design of Eurocode as well as American steel design. Please find attached the reference documents from both codes.

file 0
11_Joints_handout.pdf430.51 KB
file 1
AISC table J3.4.jfif48.24 KB
