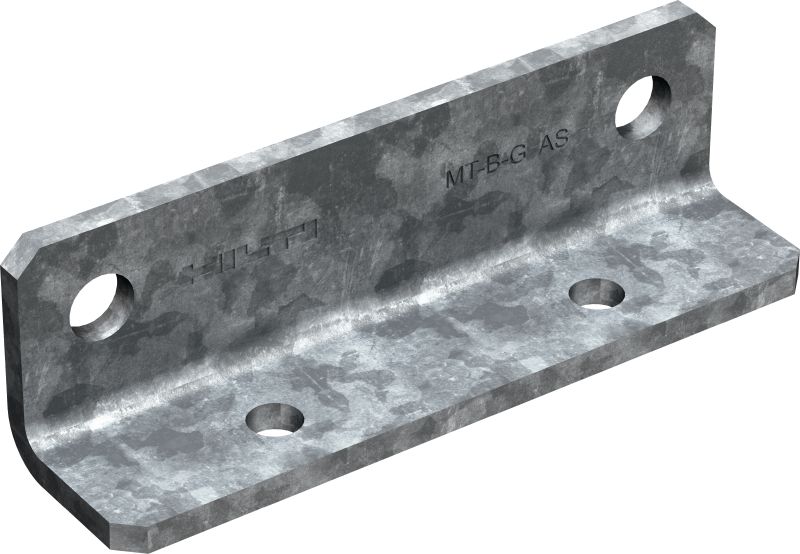

MT-B-G AS OC Base connector
Baseplate MT-B-G AS OC #2332781
Hot-dip galvanised base connector for fastening MT-70 and MT-80 girders to structural steel in moderately corrosive environments
- Material composition: Q355 or better steel
- Surface finish: Outdoor Coated - HDG
- Material thickness: 6 mm
Choose options
Pack size
- 10 pc
Quantity
Packs
Total Piece
10
Discounted net
SGD 125.00
SGD 12.50 / 1 Piece
Technical Data
Material composition
Q355 or better steel
Surface finish
Outdoor Coated - HDG
Material thickness
6 mm
Weight
1 kg
Environmental conditions
Outdoor, low to moderate pollution (C3 / C4 - low)
Documents
Features & Applications
Features
- A faster and more economical solution for installing girder cantilevers directly to steel beams
- Compatible with powder-actuated threaded studs for steel and MT Thread Forming Bolt channel connectors – for much faster, adaptable assembly
- Corrosion resistance – hot-dip galvanised to help protect against moisture and chemical corrosion
- Part of the Hilti MT system – an economical, all-in-one solution for virtually all modular MEP support structures
Applications
- Fastening MT-70 and MT-80 girders to steel beams
- Suitable for use in moderately corrosive environments
