MVA-ZC

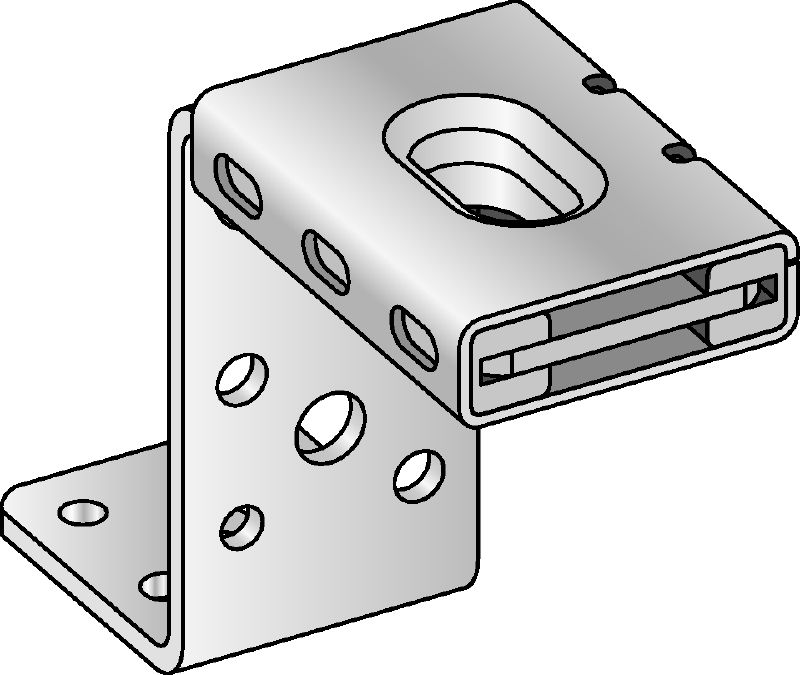

Air duct bracket MVA-ZC #386531
Galvanised air duct bracket for fastening medium ventilation ducts overhead
- Noise reduction: 12 dB (A)
- Material composition: DD11 steel - DIN EN 10111, EPDM
- Surface finish: Indoor Coated - Electro galvanised
Choose options
Thread connection - M
- M8, M10
Maximum load - F
- 600 N
Pack size
- 25 pc
Quantity
Packs
Total Pieces
25
Discounted net
SGD 60.50
SGD 2.42 / 1 Piece
Technical Data
Noise reduction
12 dB (A)
Material composition
DD11 steel - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
40° ±5° Shore A
Temperature resistance
-40 - 110 °C
Documents
pdf Operating Instruction MVA-ZC/-ZP, Arabic, Bulgarian, cn, Czech, Danish, German, Greek, English, Spanish, Estonian, Finnish, French, Hebrew, Croatian, Hungarian, Italian, Japanese, Kazakh, Korean, Lithuanian, Latvian, Malay, Dutch, Norwegian, Polish, Portuguese, Romanian, Russian, Sardinian, Slovak, Slovenian, Swedish, Thai, Turkish, Ukrainian, Vietnamese, Chinese, Serbian [ 376.5 KB ]
Features & Applications
Features
- Convenient solution for fastening ventilation ducts directly to ceilings, suspending from threaded rods or in conjunction with the MQ strut system for rising ducts
- Scale for precise alignment and stand-off installation
- Movable cage – compensates for structural tolerances and allows repositioning to help avoid drilling into rebar
- 30 mm space between the threaded rod and the duct – for easier subsequent addition of insulation
- Can be fastened to MQ installation channels or directly to the base material
Applications
- Fastening rectangular air ducts to ceilings
