MVA-Z

Name: MVA-Z
Brand: Hilti
SKU: r3812

New product

Item #r3812

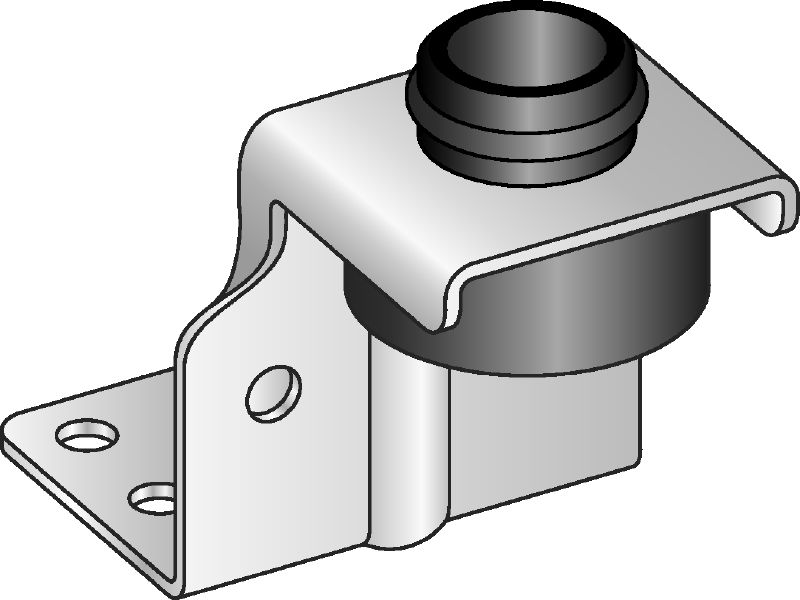

Galvanised air duct bracket for fastening light ventilation ducts overhead

Noise reduction: 18 dB (A)
Material composition: DD11 steel - DIN EN 10111, EPDM
Surface finish: Indoor Coated - Electro galvanised

More technical data

Features

Easy-to-install threaded rod suspension system for ventilation ducts
Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
Height adjustment possible even after installation
Insulation can be installed over the bracket
Hole size/shape suitable for self-drilling screws (4.2) and blind rivets

Applications

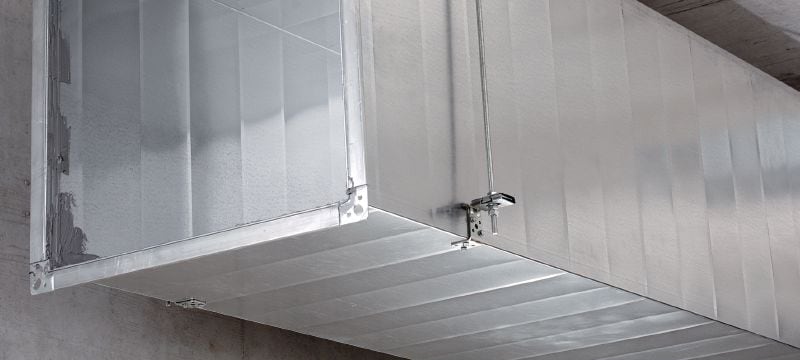

Fastening rectangular air ducts to ceilings

Technical Data

Looking for technical information?

This product comes in different variants with specific item numbers and technical data. To see specific technical information for different product items, please select the according variant in the configurator above.

Go to product configurator

Documents

Air duct bracket MVA-Z

- PDF Operating Instruction MVA-Z, [ 408 kB ]
