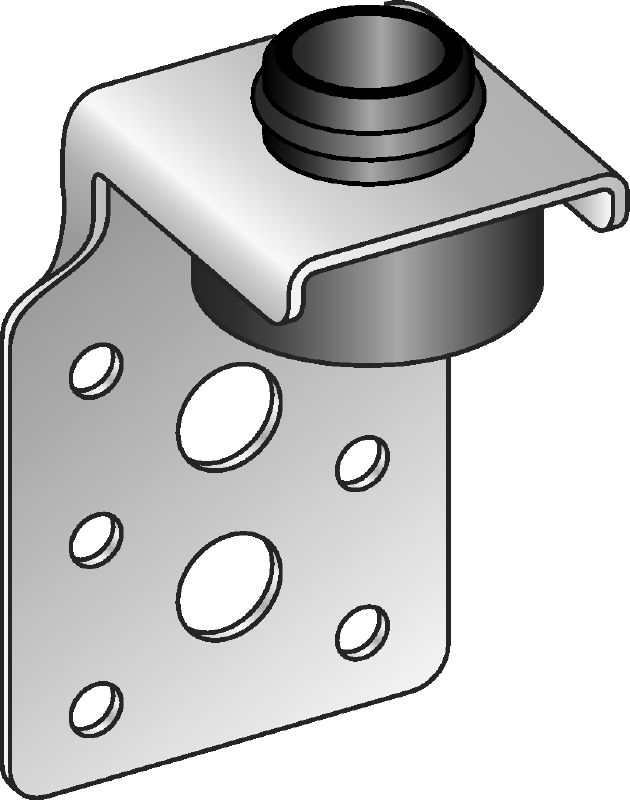

MVA-L Air duct bracket

Air duct bracket MVA-L #386535

Galvanised air duct bracket for fastening ventilation ducts directly to ceilings

  • Noise reduction: 16 dB (A)
  • Material composition: DD11 - DIN EN 10111, EPDM
  • Surface finish: Indoor Coated - Electro galvanised

Choose options

Thread connection - M
  • M8, M10
Maximum load - F
  • 500 N
Pack size
  • 50 pc
Product options
Quantity
Packs
Total Piece
50
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

SGD 103.50

SGD 2.07 / 1 Piece

Technical Data

Noise reduction
16 dB (A)
Material composition
DD11 - DIN EN 10111, EPDM
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Hardness insulation material
60° ±5° Shore A
Temperature resistance
-40 - 110 °C

Documents

Features & Applications

Features

  • Universal solution for fastening ventilation ducts directly to ceilings
  • Built-in acoustic insulation with through-hole and preassembled U-washer for M8/M10 threaded rods
  • Suitable for fastening in vertical shafts
  • Insulation can be installed over the bracket
  • Hole size/shape suitable for fastening to ducts using self-drilling screws (4.2, 4.8, 6.3), blind rivets and metric screws/M8 threaded rods

Applications

  • Fastening rectangular air ducts to ceilings
