MP-U-I Quick-close pipe clamp

Pipe clamp MP-U-I 33-37 1" M8/10 #2242264

Configurator
Technical Data
Documents
Features & Applications
Related Products
LCG003534_v2 (223712)
LCG003543_v3 (223697)
LCG003536_v2 (223714)
LCG003552_v1_cropped (223745)
LCG003548_v5_cropped (223743)

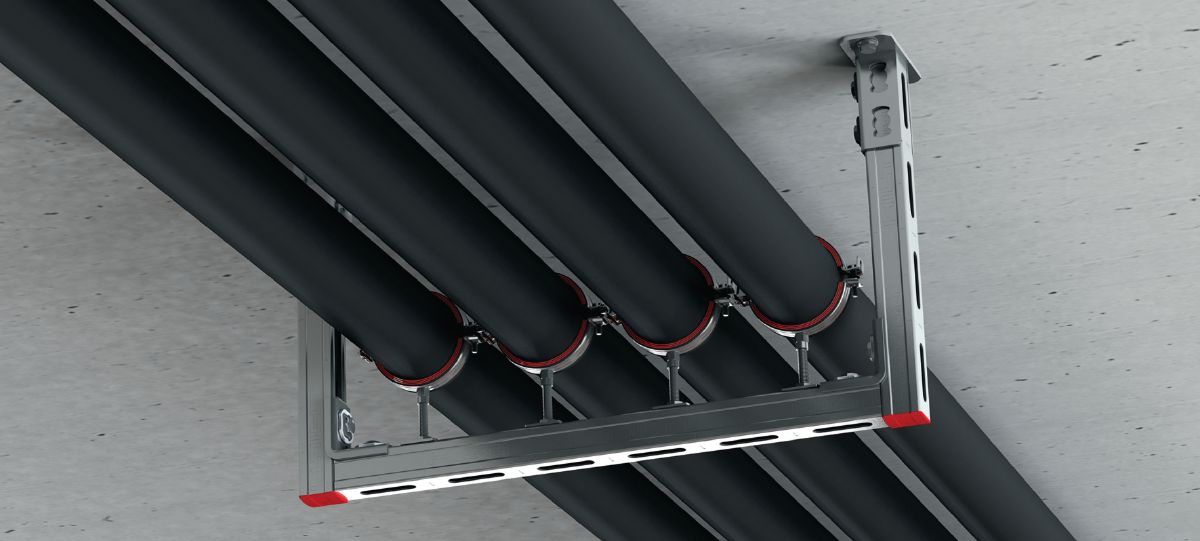

LCG003548_v3_cropped (223741)
LCG003553_v2_cropped (223744)
LCG003554_v1_cropped (223747)

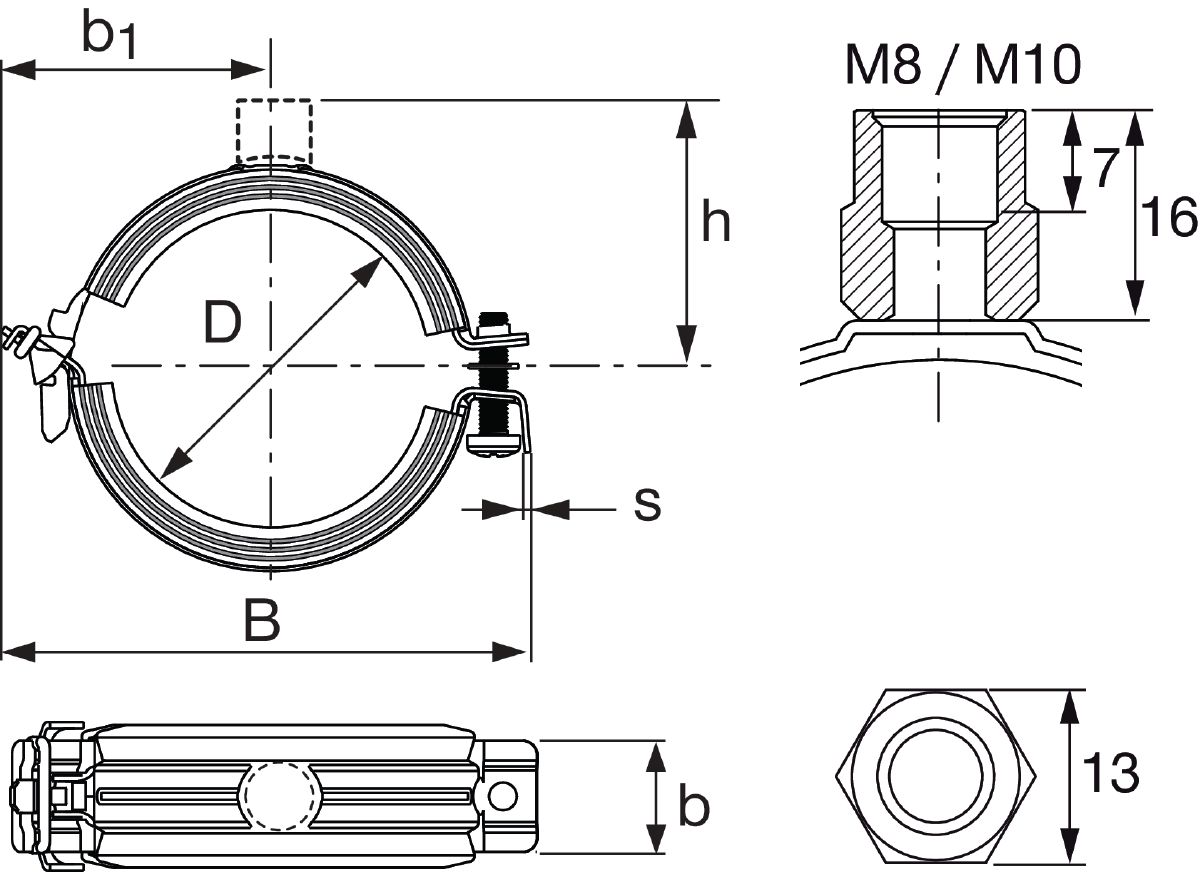

IS_MP-U-I_00030 (223732)

Galvanised pipe clamp with sound insulation and quick closure for maximum productivity in medium-duty applications

  • Approvals: Acoustic insulation DIN 4109 inspected, ETA
  • Fire resistance (yes/no): Yes
  • Noise reduction: 19.4 dB (A)

Choose options

Clamping range - D
  • 33 - 37 mm
Nominal pipe size (imperial)
  • 1 in
Pack size
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
25
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SGD 117.75
SGD 4.71
/
1 Piece

Technical Data

Details
Technical illustrations
Approvals
Acoustic insulation DIN 4109 inspected, ETA
Fire resistance (yes/no)
Yes
Noise reduction
19.4 dB (A)
Temperature resistance
-40 - 110 °C
Material composition
DC01 - DIN EN 10130, DD11 - DIN EN 10111
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Insulation material
TPE (thermoplastic elastomer)
Hardness insulation material
59°/90° ±3° Shore A
Tightening torque
1 Nm

Documents

Approval document
Test Report
Documentation
Sustainability Documentation
Operating Instruction
pdf ETA_Modulare_Schienensysteme_V1.4_de, German [ 14.2 MB ]
pdf ETA 20/0952 MP-U-I, MP-U & MP-U-G (30.11.2022), English, German, French [ 6 MB ]

Features & Applications

Features

  • Quick-closing safety mechanism – makes pipe installation faster, easier and more reliable, especially overhead
  • Extra-wide opening – pivoting half-ring gives you easier, unhindered access when inserting pipes into the pipe clamp
  • More flexibility – pipe clamps available with a variety of connection head options
  • Complete clamping range – from the smallest to largest diameter across the entire product range
  • Profiled rubber inlay with tested sound decoupling – more secure, low-friction surface for easier positioning of the pipe

Applications

  • medium-duty pipe installations up to 6"

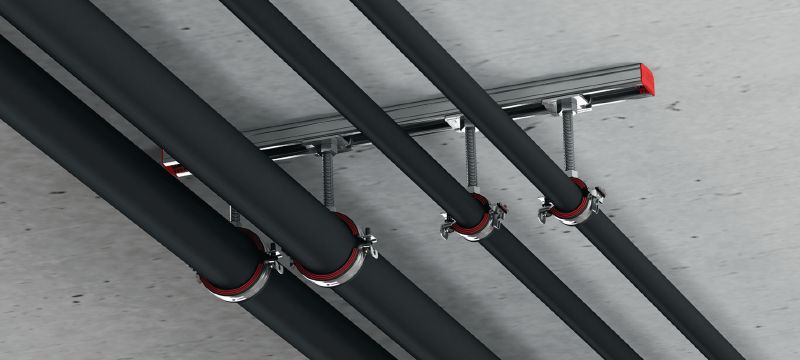

  • Fastening fresh water, waste water, sanitary and heating pipes in residential and industrial construction
  • Installing pipes in areas with fire safety requirements, such as escape and rescue routes
  • Recommended for use in dry, interior environments
  • Please note: externally threaded O16 versions require MP-GA thread adapters (available separately) for coupling to M16 threaded rods or ½" threaded pipes
