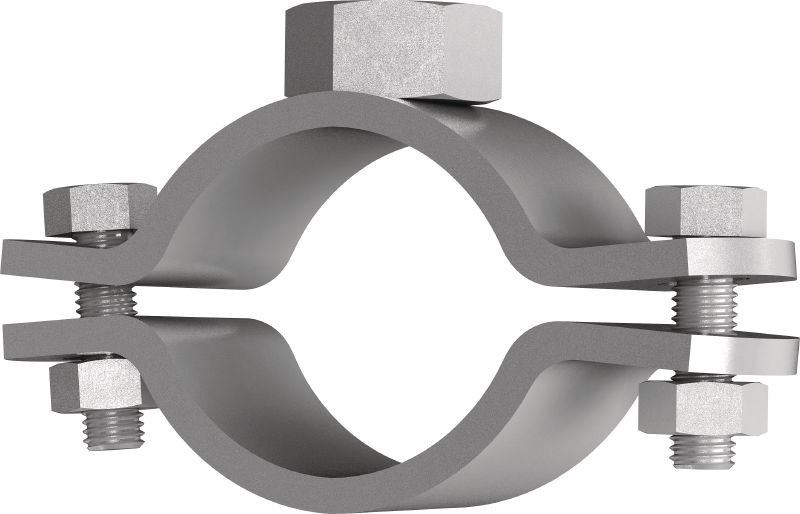

MFP-PC fixed point pipe clamp
Pipe clamp MFP-PC 88-93 M20 #2227702
Galvanised fixed point pipe clamp for maximum performance in heavy-duty applications
- Material composition: Steel
- Surface finish: Indoor Coated - Electro galvanised
- Environmental conditions: Dry indoor conditions (C1) Indoor with temporary condensation (C2)
premium
Choose options
Clamping range - D
- 88 - 93 mm
Pack size
- 2 pc
Quantity
Packs
Total Piece
2
Discounted net
SGD 111.40
SGD 55.70 / 1 Piece
Technical Data

Material composition
Steel
Surface finish
Indoor Coated - Electro galvanised
Environmental conditions
Dry indoor conditions (C1) Indoor with temporary condensation (C2)
Tightening torque
80 Nm
Product class
Premium
Documents
Features & Applications
Features
- Facilitates quicker and easier installation together with MFP fixed point sets
- Tested and verified loads with comprehensive technical data
- Versatile – can be installed on the connection boss or directly on the pipe clamp ears
Applications
- Installing fixed points in combination with the different MFP fixed point sets
- Installing pipes exposed to temperature changes
- For use with pipe diameters from 21-326 mm
