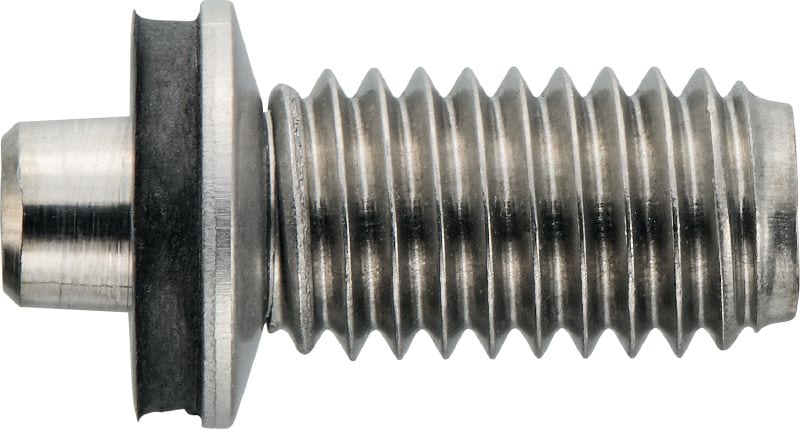

X-BT-GR Stainless steel threaded studs
New product UltimateItem #r8777389
Threaded stud for fastening grating and checker plate to steel
- Base materials: Steel
- Minimum thickness of base material (steel): 8 mm
- Corrosion protection: Corrosion protection equivalent to A4(316)
Share
Features
- No rework necessary on coated steel – corrosion protection remains intact
- Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
- Portable, cordless system – eliminates the need for long electric supply cords
- Fast – ideal for fastening directly to coated or treated steel
- Corrosion-resistant – suitable for marine, offshore and petrochemical applications, power plants, etc.
Applications
- Fastening gratings to steel structures using X-FCM-M or X-FCM-R grating discs and X-FCS grating elements
- Fastening cable trays, channels, strut, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
- Fastening threaded rod to steel
- Fastening to fire-coated (PFP) beams
- Fastening checker plate with X-FCP-R grating discs
For approval or certificate information, please see individual items.
Technical Data
Documents
-
- ETA-20/1042 for X-BT-MR and X-BT-GR, English, German, [ 8.8 MB ]
- LR Type Approval 19/00003 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners in marine, offshore and industrial application, English, [ 783.4 kB ]
- DNV Approval TAS00001SV-5 for X-BT-GR, X-BT-MR and X-BT-ER threaded fasteners, English, [ 435.1 kB ]
- ABS Type Approval 23-2426560-PDA for X-BT-GR. X-BT-MR, X-BT-ER fastening system in off-shore and shipbuilding application, English, [ 112.8 kB ]
- BV approval 54054-B1 for X-BT-GR, X-BT-MR and X-BT-ER fastening system, English, [ 1.1 MB ]
