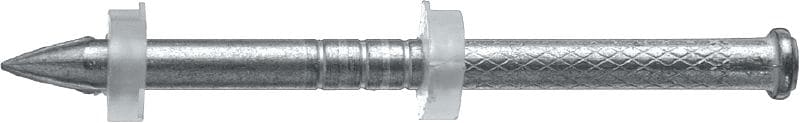

X-CT DP8 Formwork nails

Single formwork nail for use with powder-actuated tools on concrete

  • Base materials: Concrete (soft), Masonry (solid limestone brick), Steel
  • Minimum thickness of base material (concrete): 80 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
premium

Customers also searched for Temporary fasteningKicker plate attachmentTemporary wood to concrete or Sill plate to concrete.

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick), Steel
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Outdoor temporary applications, Dry indoor, Indoor with temporary condensation
Material
Carbon steel
Fastener shank diameter
3.7 mm
Point type
Cut point
Approvals
ITB
For use with (tools)
DX 5, DX 6
Product class
Premium

Documents

Features & Applications

Features

  • Predefined shear points on the fastener for controlled removal of nails
  • Fast removal – no crowbar needed
  • Remove wood virtually undamaged so it can be reused

Applications

  • Temporary fastening of wood to concrete

For approval or certificate information, please see individual items.
