X-U MX steel/masonry nails (collated)
High-performance collated nails for fastening to concrete and steel using powder-actuated tools
- Base materials: Concrete (soft), Concrete (tough), Steel
- Minimum thickness of base material (concrete): 80 mm
- Minimum thickness of base material (steel): 6 mm
premium
Technical Data
Base materials
Concrete (soft), Concrete (tough), Steel
Minimum thickness of base material (concrete)
80 mm
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
4 mm
Point type
Ballistic point, knurled
Approvals
COLA, DIBt, IBMB, ICC-ES, LR
For use with (tools)
DX 5, DX 6
Product class
Premium
Documents
Features & Applications
Features
- Galvanised nails for fastenings on concrete or steel
- Higher application limits, higher ultimate tensile loads
- Available in lengths up to 72 mm
- Knurled point for increased performance on high-strength steel and hard concrete

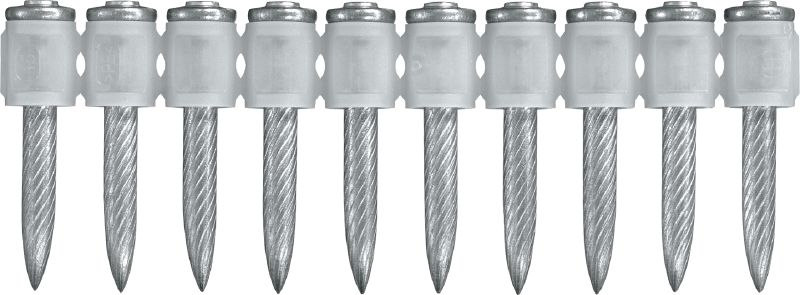

- Strips of 10 collated nails – for extremely high productivity and easier fastener loading
Applications

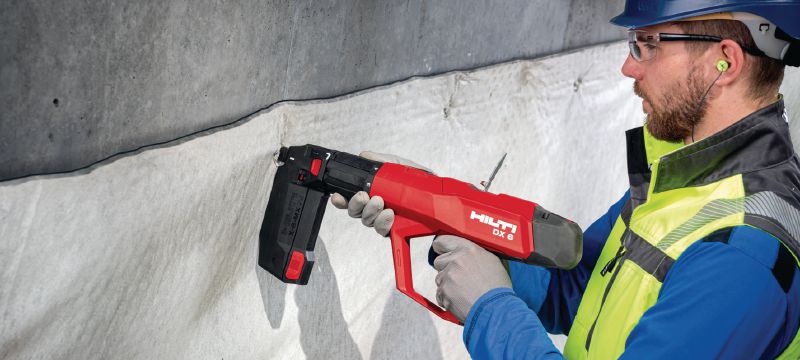

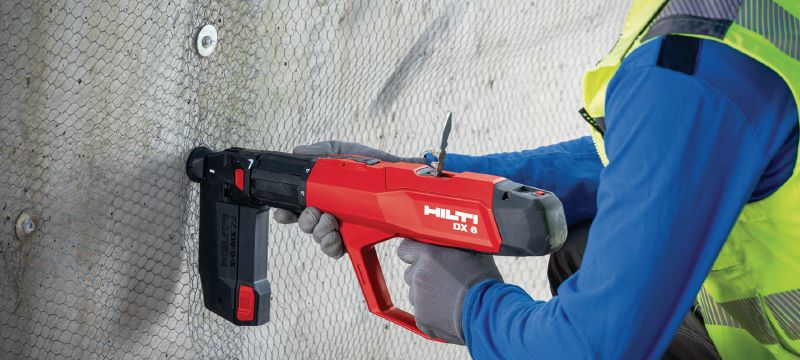

- Fastening to concrete or steel

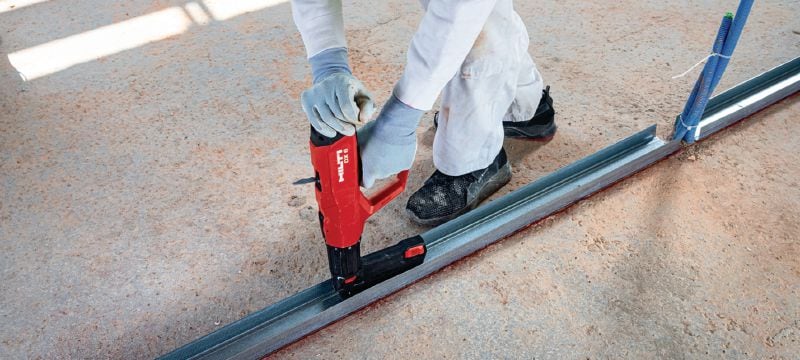

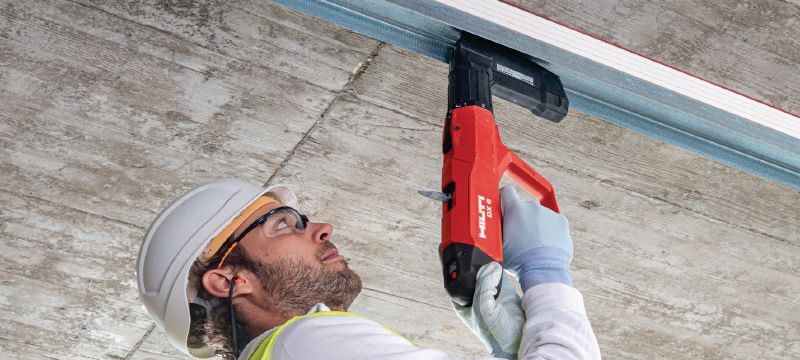

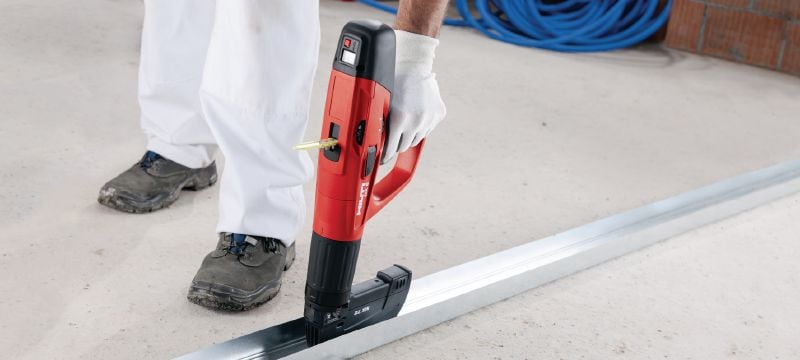

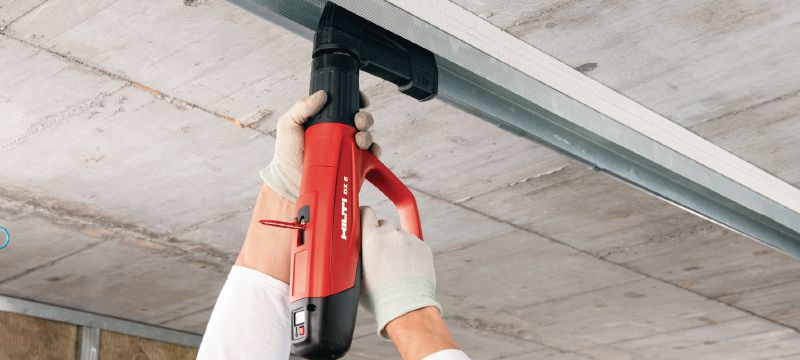

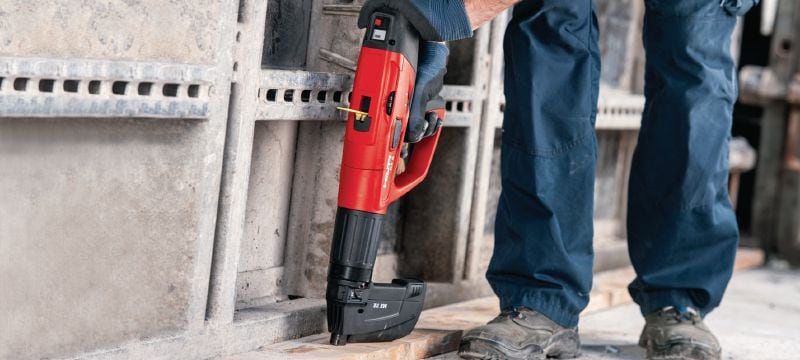

- Fastening drywall track to concrete
- Fastening wall ties

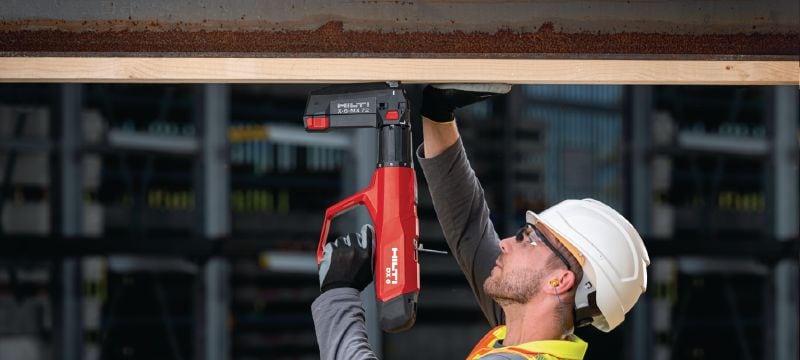

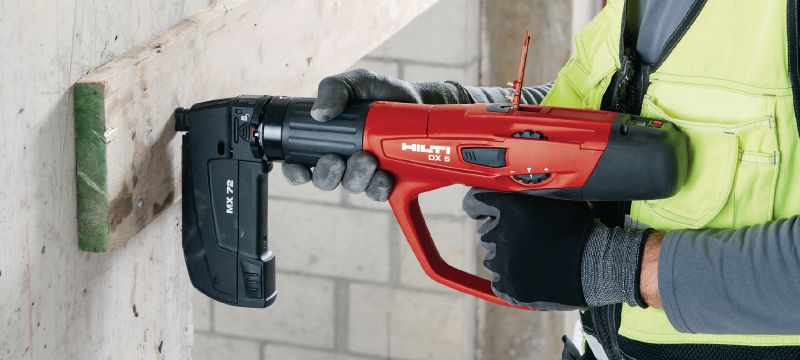

- Fastening wood to concrete

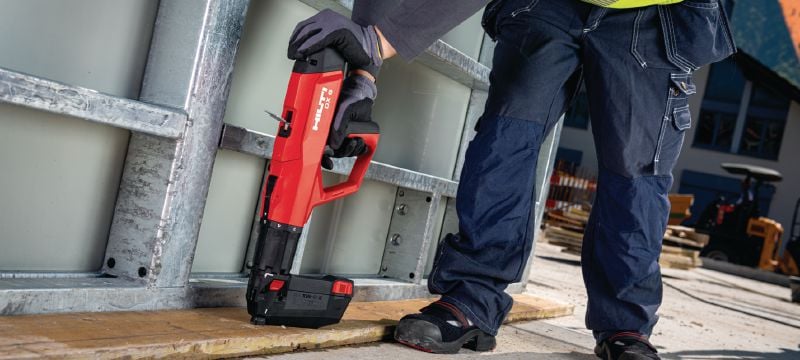

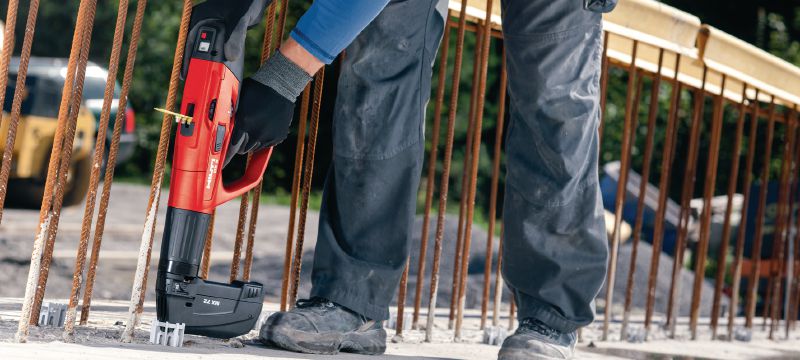

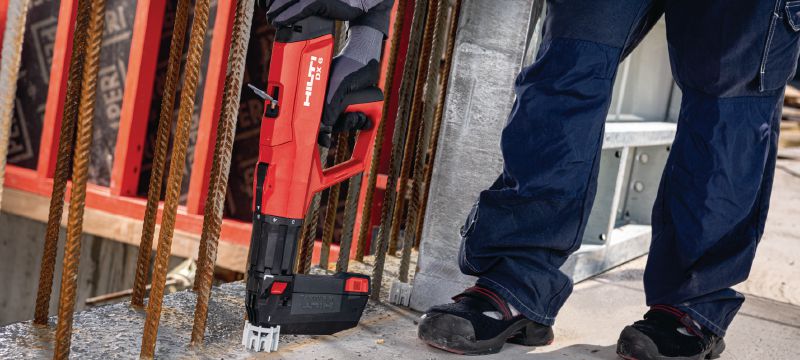

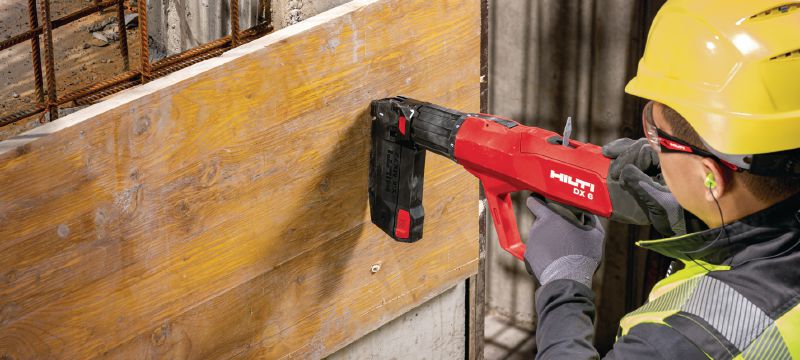

- Setting up formwork and safety barriers
For approval or certificate information, please see individual items.
