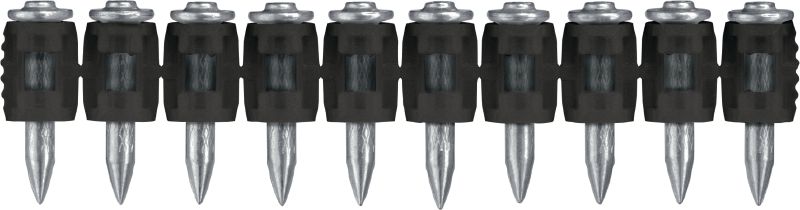

X-C MX Concrete nails (collated)
Premium collated nails for fastening to concrete using powder-actuated tools
- Base materials: Concrete (soft), Masonry (solid limestone brick)
- Minimum thickness of base material (concrete): 80 mm
- Corrosion protection: Galvanised zinc coated <20 µm
standard
Customers also searched for Collated nail for concrete, Concrete nail, Concrete fastener, Powder-actuated fastener or Collated nail fastener.
Choose options
Fastener shank length
- 20 mm
- 27 mm
- 32 mm
- 37 mm
- 47 mm
- 52 mm
- 62 mm
- 72 mm
Pack size
- 1 pc
- 100 pc
Quantity
Packs
Total Pieces
1
Discounted net
From SGD 5.87
Technical Data
Base materials
Concrete (soft), Masonry (solid limestone brick)
Minimum thickness of base material (concrete)
80 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
3.5 mm
Point type
Cut point
Approvals
ICC-ES
For use with (tools)
DX 351, DX 5, DX 6
Product class
Standard
Documents
Features & Applications
Features
- Nail for fastenings to concrete
- Premium fastener for attaching a variety of thin materials to masonry block and concrete
- Suitable for soft to medium-hard concrete (up to 45 N/mm² concrete strength)
- Best suited to fastening to concrete with a hardness of up to 6,000 psi
- Strips of 10 collated nails – for extremely high productivity and easier fastener loading
Applications
- Fastening wood to concrete, e.g. formwork boards, safety barriers, etc.
- Fastening thin wood profiles to concrete
- Attaching metal track for plasterboard/dry lining to masonry block and concrete
- Fastening HVAC duct strapping or suspended ceilings to concrete
- Fastening termination bars to secure waterproofing membrane or moisture barriers
For approval or certificate information, please see individual items.
