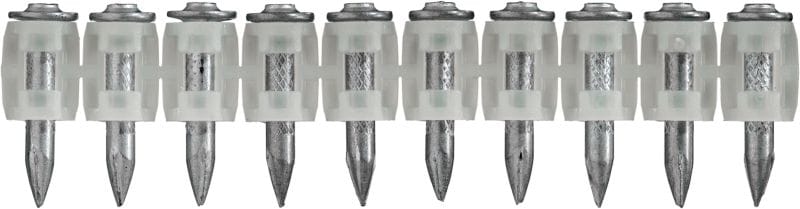

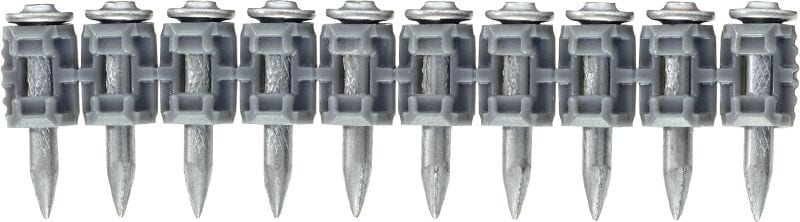

X-GN MX Masonry nails (collated)

Collated nails for fastening to concrete and other base materials using the GX 120 gas nailer

  • Base materials: Concrete (soft), Masonry (solid limestone brick), Masonry (grout filled concrete block)
  • Minimum thickness of base material (concrete): 60 mm
  • Corrosion protection: Galvanised zinc coated <20 µm
standard

Customers also searched for gas nail or concrete nail.

Technical Data

Base materials
Concrete (soft), Masonry (solid limestone brick), Masonry (grout filled concrete block)
Minimum thickness of base material (concrete)
60 mm
Corrosion protection
Galvanised zinc coated <20 µm
Environmental conditions
Dry indoor
Material
Carbon steel
Fastener shank diameter
2.6 mm
Point type
Cut point
Approvals
IBMB
For use with (tools)

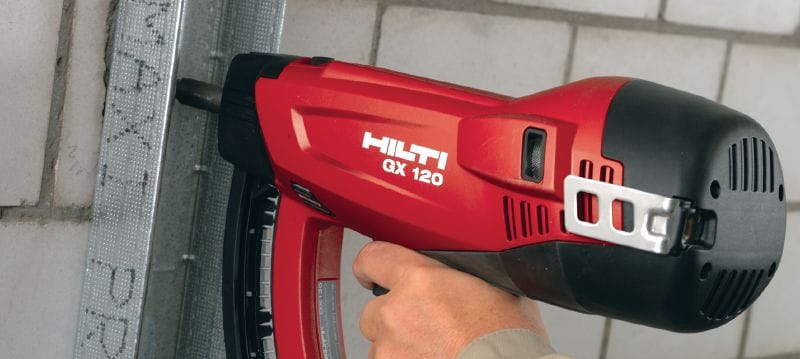

GX 120
Product class
Standard

Documents

Features & Applications

Features

  • Nail for excellent performance on soft concrete
  • Everyday fastening solution with cut-tip nail

Applications

  • Fastening to soft concrete
  • Fastening to solid masonry
  • Fastening to filled block

For approval or certificate information, please see individual items.
