HSL-3-GR Heavy-duty wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L102719 (182497)

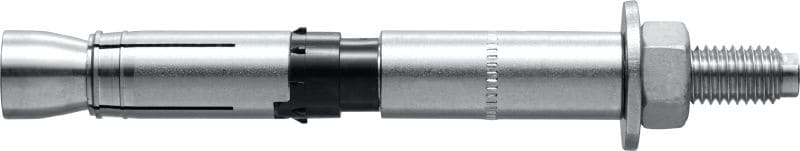

Ultimate-performance removable heavy-duty wedge anchor with approvals for fire, seismic and cracked concrete (A4 stainless steel, extended thread)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
Anchor length
  • 115 mm
  • 132 mm
  • 157 mm
  • 181 mm
  • 195 mm
  • 211 mm
  • 212 mm
  • 232 mm
  • 256 mm
  • 281 mm
Pack size
  • 6 pc
  • 10 pc
  • 20 pc
  • 40 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SGD 775.00

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes

Documents

Approval document
Brochure
Operating Instruction
pdf ETA 02/0042 for HSL-3 heavy-duty expansion anchor, English, German, French, Polish [ 6 MB ]

Features & Applications

Features

  • Combining high tension and shear load resistance along with an easy and reliable installation, HSL-3 are a safe and cost efficient alternative to classical fastening solution such as studs or chemical anchors
  • The classic threaded rod and nut ensure that the fixture can be easily removed without damaging the fastening point
  • Excels in cracked concrete from C20/25 to C50/60
  • Extreme shear load resistance thanks to high strength sleeve
  • Collapsing element prevents anchor from spinning in the hole and ensures reliable clamping of the fixture

Applications

  • Structural steel
  • Safety-critical steel elements
  • Curtain walls
  • Pipe supports
  • Industrial equipment

For approval or certificate information, please see individual items.
