HST3-R Stainless steel wedge anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
HST3-R M12x115 40/20
HST3 (76002)
5969.tif
77575.tif
HST3 (74487)
HST3 (74484)

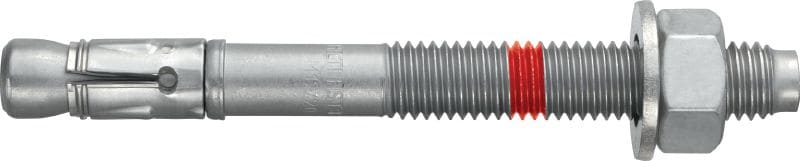

Ultimate-performance wedge anchor for demanding static and seismic loads in cracked concrete (A4 stainless steel)

  • Material, corrosion: Stainless steel, A4
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, Seismic

Customers also searched for anchor, stud anchor bolt, wedge anchor bolt, expansion anchor or wedge anchor for concrete.

Choose options

Anchor size
  • M10
  • M12
  • M20
Anchor length
  • 130 mm
  • 145 mm
  • 170 mm
Pack size
  • 5 pc
  • 25 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SGD 359.00

Technical Data

Material, corrosion
Stainless steel, A4
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, Seismic
Base materials
Concrete (cracked)
Installation tools
DD 30-W Core drill, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes
Environmental conditions
Indoor with temporary condensation

Documents

Technical information
Approval document
Brochure
pdf Technical data sheet for the HST3 metal expansion anchor, English [ 1.7 MB ]
pdf White paper Ungrouted stand-off base plates EU [ 1.2 MB ]
pdf White Paper Grouted stand-off base plates EU, English [ 894.9 KB ]
pdf Solutions for fastening: Improved design for anchors under shear loading, English [ 1.6 MB ]

Features & Applications

Features

  • More economical, optimized anchor designs – larger range of embedment depths available and flexible edge and spacing, making more economical designs using smaller baseplates and façade brackets a possibility
  • Faster and easier to install correctly –requires no hole cleaning (M8-M20) and ready for automated pre-tensioning with a Hilti Adaptive Torque tool (M8-M16)
  • Design support available – use PROFIS Engineering Suite to simplify steel-to-concrete connection design, or contact your local Hilti Engineering Team for advice on more complex projects
  • Easier inspections – head marking showing anchor type and length to simplify quality control after setting

Applications

  • Stainless steel wedge anchor for all safety-relevant fastenings in cracked and uncracked concrete in corrosive environments
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

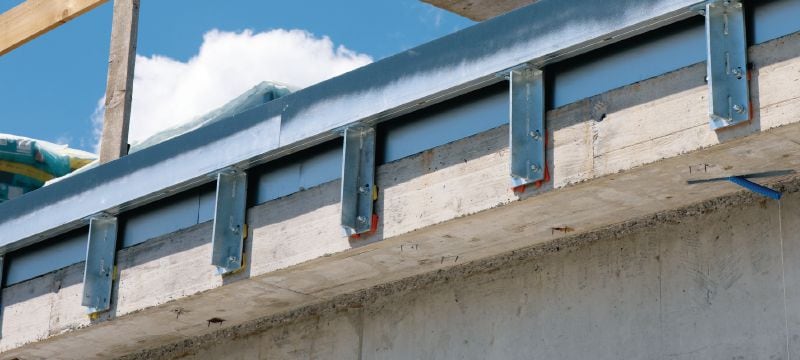

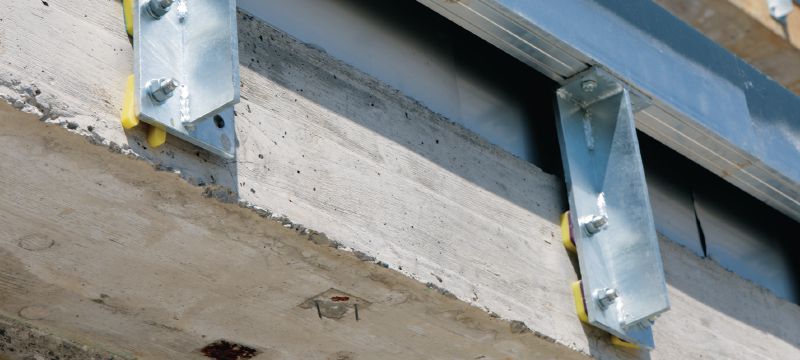

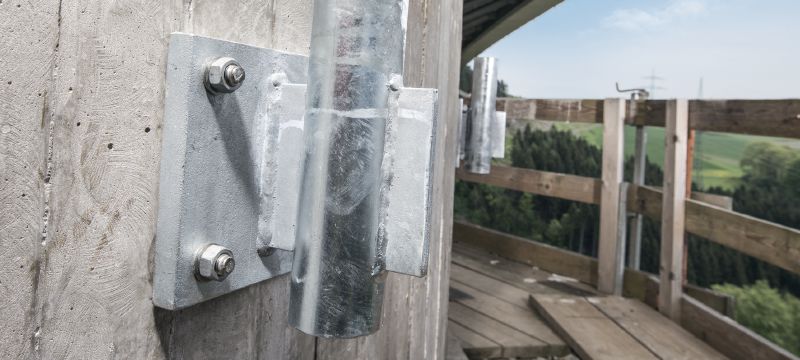

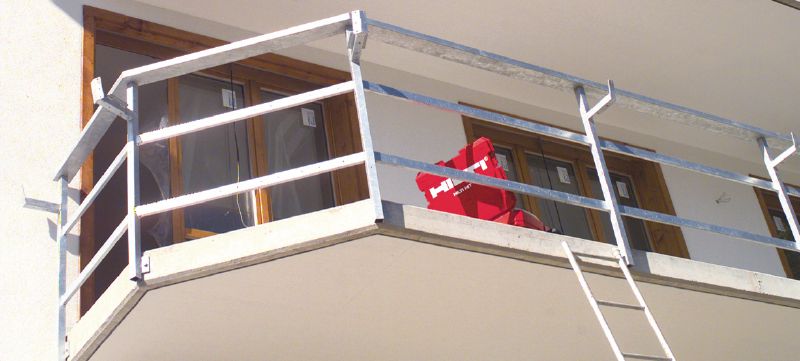

  • Fastening baseplates, handrails, façade systems, machinery or racking to concrete when corrosion resistance is required
  • Suitable for use in corrosive environments

For approval or certificate information, please see individual items.
