Ultimate-performance expansion anchor for cracked concrete and seismic (CS)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fire, FM (Factory Mutual), Seismic

Customers also searched for anchorstud anchor boltwedge anchor boltexpansion anchor or wedge anchor for concrete.

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
Anchor length
  • 75 mm
  • 90 mm
  • 95 mm
  • 105 mm
  • 110 mm
  • 115 mm
  • 130 mm
  • 135 mm
  • 145 mm
  • 170 mm
  • 185 mm
  • 200 mm
  • 215 mm
  • 220 mm
  • 230 mm
  • 255 mm
  • 260 mm
  • 300 mm
Pack size
  • 5 pc
  • 12 pc
  • 25 pc
  • 40 pc
  • 50 pc
  • 80 pc
  • 100 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net

From SGD 145.00

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fire, FM (Factory Mutual), Seismic
Base materials
Concrete (cracked), Concrete (non-cracked)
Installation tools
TE 30-22 cordless rotary hammer, SIW 6-22 ½” Cordless impact wrench, TE 6-A22 Cordless rotary hammer
PROFIS software
Yes

Documents

Features & Applications

Features

  • Highest resistance to meet geometrically challenging requirements, e.g. reduced member thickness, smallest spacing and edge distances
  • Increased undercut percentage in combination with optimized coating
  • Greater flexibility thanks to two embedment depths included in the ETA
  • Minimum edge and spacing distances reduced by up to 25% compared to HST

Applications

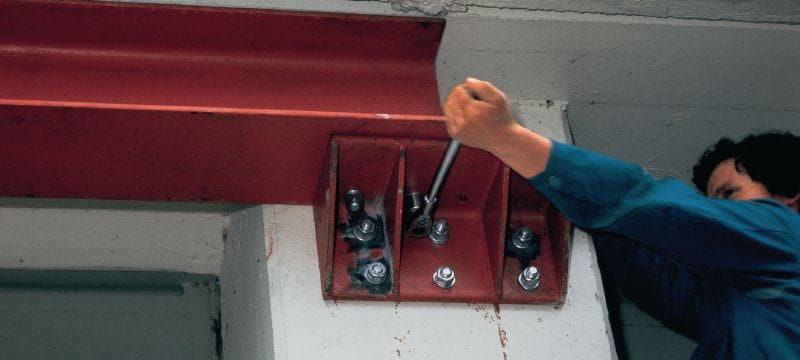

  • All safety-relevant fastenings in cracked and uncracked concrete
  • All safety-relevant fastenings in seismic loading conditions, category C1 for non-structural elements and category C2 for structural elements

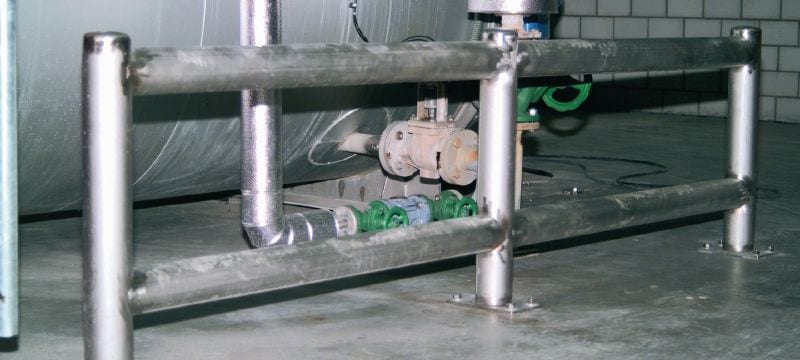

  • Hand rails
  • Racks

For approval or certificate information, please see individual items.
