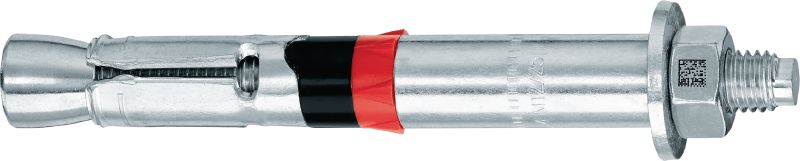

HSL4-G Heavy-duty wedge anchor

Ultimate-performance heavy-duty expansion stud anchor with approvals for safety-relevant applications in concrete (carbon steel, external thread)

  • Material, corrosion: Carbon steel, zinc-plated
  • Head configuration: Externally threaded
  • Approvals / test reports: ETA, Fatigue, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic

Choose options

Anchor size
  • M8
  • M10
  • M12
  • M16
  • M20
  • M24
Anchor length
  • 92 mm
  • 106 mm
  • 107 mm
  • 121 mm
  • 127 mm
  • 141 mm
  • 147 mm
  • 160 mm
  • 172 mm
  • 175 mm
  • 185 mm
  • 200 mm
  • 205 mm
  • 210 mm
  • 230 mm
  • 235 mm
  • 260 mm
Pack size
  • 4 pc
  • 6 pc
  • 10 pc
  • 20 pc
  • 40 pc
Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

Technical Data

Material, corrosion
Carbon steel, zinc-plated
Head configuration
Externally threaded
Approvals / test reports
ETA, Fatigue, Fire, ICC-ES report (concrete), LABC, Nuclear (NQA-1), Seismic
Base materials
Concrete (cracked), Concrete (uncracked)
PROFIS software
Yes

Documents

Features & Applications

Features

  • High tensile and shear load capacity
  • Force-controlled expansion allows follow-up expansion
  • ETA Option 1 for cracked and uncracked concrete
  • ICC-ES/AC 193 for cracked or uncracked concrete and seismic applications
  • Suitable for dynamic loading including fatigue, seismic and shock

Applications

  • Heavy-duty fastenings in highly safety-relevant or dynamic applications, including applications in nuclear power plants
  • Applications where extensive approval back-up or technical back-up is required, e.g. machines, heavy equipment, steel columns, heavy pipe supports, pumps, beam supports, medical equipment, cantilevers, cranes, car hoists, etc.

For approval or certificate information, please see individual items.
