HIT-RE 500 V3 Epoxy anchor

Hilti HIT-RE 500 V3 Adhesive Anchoring System (teaser)

HIT RE 500-V3 – Productivity, reliability

HIT RE 500 V3 - Post-installed rebar connections. (EN / 83416)

HIT RE 500 V3 - Post-installed rebar connections. (EN / 83417)

Hilti slow-cure adhesive anchor system. (EN / 90326)

Ultimate-performance injectable epoxy mortar with approvals for rebar connections and heavy-duty anchoring

Base materials: Concrete (cracked), Concrete (non-cracked), Wood
Advantage 01: Suitable for use in cracked and uncracked concrete with all anchoring elements
Advantage 02: Seismic approval

Customers also searched for Epoxy, Slow Cure, Injectable, Chemical Anchor or rebar.

Technical Data

Base materials

Concrete (cracked), Concrete (non-cracked), Wood

Advantage 01

Suitable for use in cracked and uncracked concrete with all anchoring elements

Advantage 02

Seismic approval

Advantage 03

High performance and technical superiority as per international approvals

Advantage 05

Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool

Advantage 06

Injectable epoxy suitable for all-year use – cures at temperatures down to -5°C / 23°F

Advantage 07

The fastest-curing epoxy mortar on the market

Advantage 09

Longer working time – allows greater flexibility during installation

Advantage 10

Suitable for water-filled holes and underwater applications (depending on rod specification and approvals)

Application 01

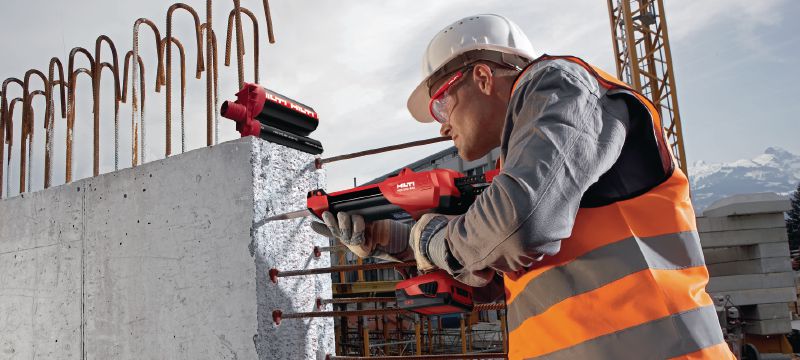

Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)

Application 02

Anchoring structural steel connections (e.g. steel columns, beams, etc.)

Base material condition

Dry, Water-filled, Wet

Approvals / test reports

BZS/shock, DIBt, ETA, Fire

Seismic loading

Yes

Fire resistance

Yes

PROFIS software

Yes

Anchoring elements

HAS-U threaded rods, Rebar

Application 03

Anchoring secondary steel structures (e.g. balustrades, steel ledgers, etc.)

Application 04

Anchoring crash barriers, noise barriers, etc.

Application 05

Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible

Application 06

Substitution of misplaced / missing rebar or couplers

Application 07

Special applications requiring electrical isolation, such as fastening emergency escape handrails in tunnels

Application 08

Fastenings requiring seismic qualification

Application 09

Special anchor element available to help prevent punch-through in slabs

Application 10

Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.

Environmental conditions

Underwater, fresh water, Underwater, salty water

Cleaning procedures

Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 70 °C

Documents

Features & Applications

Features

High performance and technical superiority as per international approvals
Suitable for diamond-cored holes – when prepared using the TE-YRT roughening tool
Longer working time – allows greater flexibility during installation
Suitable for water-filled holes and underwater applications (depending on rod specification and approvals)
Suitable for use in cracked and uncracked concrete with all anchoring elements

Applications

Structural connections with post-installed rebar (e.g. extension/connection to walls, slabs, stairs, columns, foundations, etc.)
Structural renovation of buildings, bridges and other civil structures, retrofitting and re-strengthening of concrete members possible
Anchoring structural steel connections (e.g. steel columns, beams, etc.)
Fastening in natural stone and wood, including GLT and CLT made by spruce, pine or fir.
Anchoring secondary steel structures (e.g. balustrades, steel ledgers, etc.)

For approval or certificate information, please see individual items.
