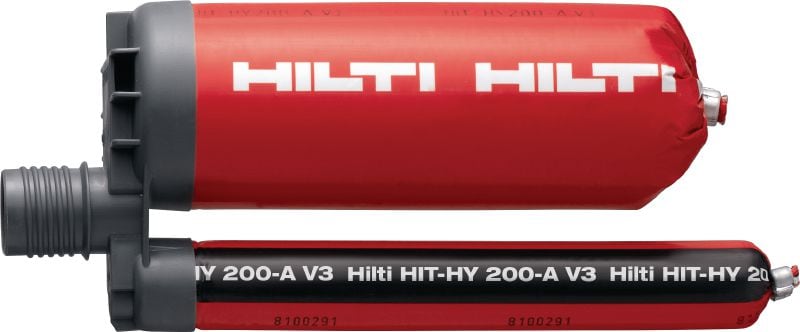

HIT-HY 200-A V3 Adhesive anchor

Configurator
Technical Data
Documents
Features & Applications
Related Products
L061443_v1 (228009)
L142103_HNL_cropped (2282877)
L142088_HNA_cropped (2282857)
L131948_cropped (3155310)
L120587_cropped (204508)
L120633_cropped (204515)

Ultimate-performance injection mortar – fast-cure adhesive anchor approved for structural base plate anchoring and post-installed rebar connections in concrete

  • Base materials: Concrete (cracked), Concrete (non-cracked)
  • Base material condition: Dry, Water-filled
  • Approvals / test reports: ETA

Choose options

Content per can/cartridge
  • 0.5 l
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
From SGD 1,300.00

Technical Data

Base materials
Concrete (cracked), Concrete (non-cracked)
Base material condition
Dry, Water-filled
Approvals / test reports
ETA
PROFIS software
Yes
Anchoring elements
HAS-U threaded rods, Rebar
Cleaning procedures
Manual cleaning
Storage and transportation temperature range
5 - 25 °C
In-service temperature – range
-40 - 120 °C
Free of styrene
Yes

Documents

Approval document
Technical information
Certificate
Brochure
pdf ETA-18/0972 HIT-HY-200-A/R V3 with HAS-D Anchor Jul-2023, English, German, Polish [ 16.3 MB ]
pdf ETA-20/0475 HCC-K, English, German, Polish, French [ 3.8 MB ]
pdf ETA-20/0697 HCC-U, English, German, French [ 14.9 MB ]
pdf ETA-15/0296 HIT-HY 200-A/R V3 with HIT-Z(-R)-D TP Anchor Jul-2023, English, German, French, Polish [ 14.1 MB ]
pdf ETA-18/0978, Hilti HIT-HY 200-AV3/-RV3 with HAS-D for fatigue, ML, English, German, Polish [ 18.3 MB ]

Features & Applications

Features

  • Faster curing – optimised for anchoring applications in dry concrete, wet concrete or water filled drill holes (depending on rod specification and approvals), with a wide working temperature range (-10°C to +40°C).
  • Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
  • Versatile adhesive anchor for wide ranging conditions – approved for hammer drilled, hollow drilled and diamond cored holes (with TE-YRT).
  • Faster, simpler and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
  • Extensive approvals available – including ETA for cracked and uncracked concrete, seismic C2, fire resistance data and with service life up to 100 years in rebar and anchor

Applications

  • Anchoring structural steel connections (e.g. steel columns, beams) to concrete
  • Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
  • Concrete connections designed both as rigid and as simply supported
  • Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
  • Structural concrete connections with post-installed rebar

For approval or certificate information, please see individual items.
