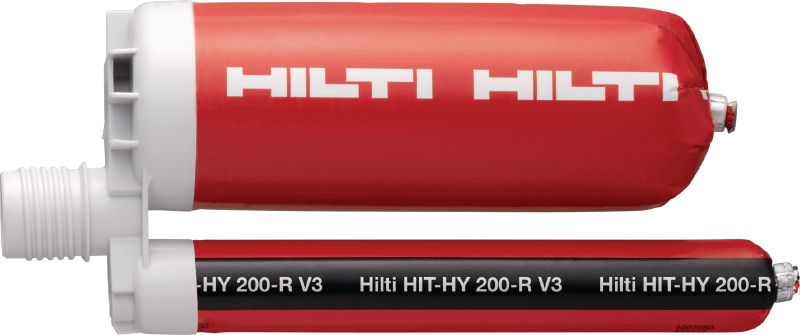

HIT-HY 200-R V3 Adhesive anchor

HY 200-R V3 promo_contractor_1080p-34_EN (EN / 206395)

HY 200-R V3 promo_specifier_1080p-34_EN (EN / 207149)

Ultimate-performance injectable hybrid mortar with approvals for post-installed rebar connections and anchoring structural baseplates

Base materials: Concrete (cracked), Concrete (non-cracked)
Base material condition: Dry, Wet
Approvals / test reports: ETA, Fatigue, Fire, Seismic

Customers also searched for Hybrid, Base Plate, Fast cure, Mortar or Rebar.

Technical Data

Base materials

Concrete (cracked), Concrete (non-cracked)

Base material condition

Dry, Wet

Approvals / test reports

ETA, Fatigue, Fire, Seismic

Seismic loading

Yes

Fatigue loading

Yes

Fire resistance

Yes

PROFIS software

Yes

Anchoring elements

HAS-U threaded rods, HIS-N internally threaded sleeves, HIT-Z torque-controlled bonded anchors, Rebar

Environmental conditions

Dry indoor, Highly corrosive special applications (e.g. tunnels, swimming pools), Indoor with temporary condensation, Outdoor (more than 1km to coast)

Cleaning procedures

Automatic cleaning (SafeSet hollow drill bit), Compressed-air cleaning, Manual cleaning

Storage and transportation temperature range

5 - 25 °C

In-service temperature – range

-40 - 120 °C

Free of styrene

Yes

Type of fastening

Pre-fastening

Documents

Features & Applications

Features

Easier to specify and order – use PROFIS Engineering to design steel to concrete or concrete to concrete connections according to EC2, TR069, TR082 or the Hilti Design Method
Versatile adhesive anchor for wide ranging conditions - approved for hammer drilled, hollow drilled, and diamond cored holes (with TE-YRT).
Faster, simpler, and safer installations – combine with our fully cordless SafeSet system for a seamless installation solution to reduce time on-site and installation errors
Extensive approvals available - including ETA for cracked and uncracked concrete, seismic C2, fire resistance data, and with service life up to 100 years in rebar and anchor
Optimized embedment depth – higher mortar strength makes more efficient embedment depths possible and may help post-installed rebar perform better than cast-in bars

Applications

Structural concrete connections with post-installed rebar
Fastening secondary steel structures (e.g. racking, machinery, guard rails, sound barriers) to concrete
Anchoring structural steel connections (e.g. steel columns, beams) to concrete
Strengthening concrete and retrofitting reinforced concrete buildings, including replacing misplaced/missing cast-in rebar with post-installed rebar
Concrete connections designed both as rigid and as simply supported

For approval or certificate information, please see individual items.
