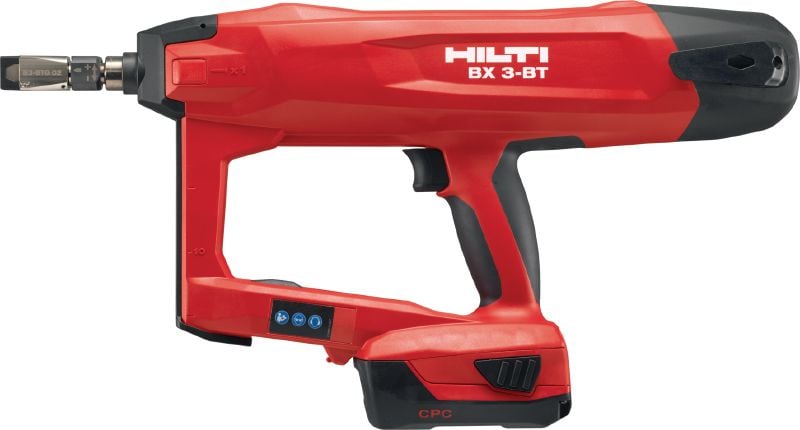

BX 3-BT (02) Cordless fastening tool

22V cordless nailer for fastening X-BT threaded stud

  • Dimensions (LxWxH): 490 x 134 x 255 mm
  • Tool body weight: 3.452 kg
  • Fastener intake: Threaded stud

Technical Data

Dimensions (LxWxH)
490 x 134 x 255 mm
Tool body weight
3.452 kg
Fastener intake
Threaded stud
Fastener length range
21 - 31 mm
Bluetooth
No
Rated voltage
21.6 V

Documents

Features & Applications

Features

  • Build on the second generation of Hilti’s combustion-free direct fastening technology – for high-quality and more reliable X-BT threaded stud fastening on steel
  • Combustion-free operation – no powder cartridges to store and dispose
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2, 3.0 or 2.6 Ah)
  • Fast – ideal for fastening directly to coated or treated steel
  • Suitable for use on high-strength coated steel 8 mm (5/16") or thicker

Applications

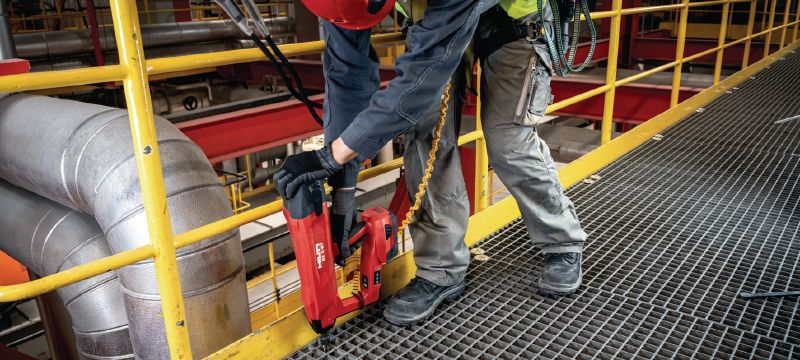

  • Fastening gratings to steel structures using X-FCM-M or X-FCM-R grating discs and X-FCS grating elements

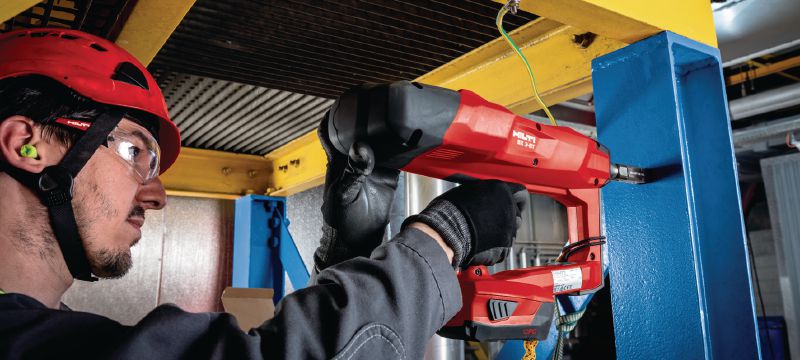

  • Fastening cable trays, cable ladders, channels, struts, light-duty electrical installation (T-bars, instrumentation panels, junction boxes), fitting out and much more
  • Fastenings X-BT threaded stud to fire-coated (PFP) beams
  • Functional bonding, protective bonding, terminal connection, lightning protection, bonding, and earthing/grounding applications when fixing X-BT-ER threaded studs

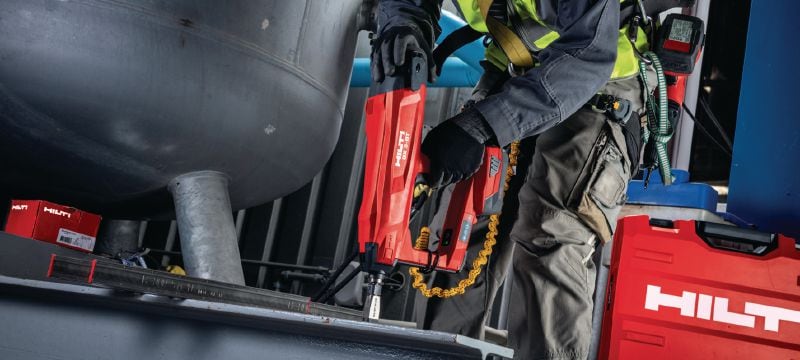

  • Fastening pipe supports to steel; cable tray supports to steel

For approval or certificate information, please see individual items.
