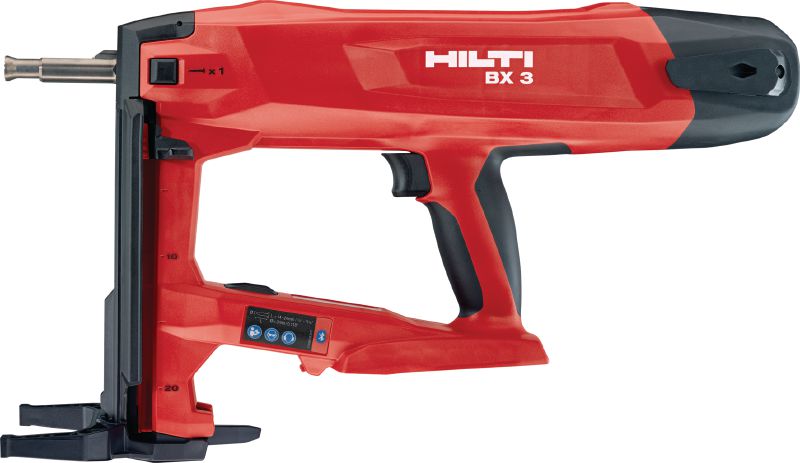

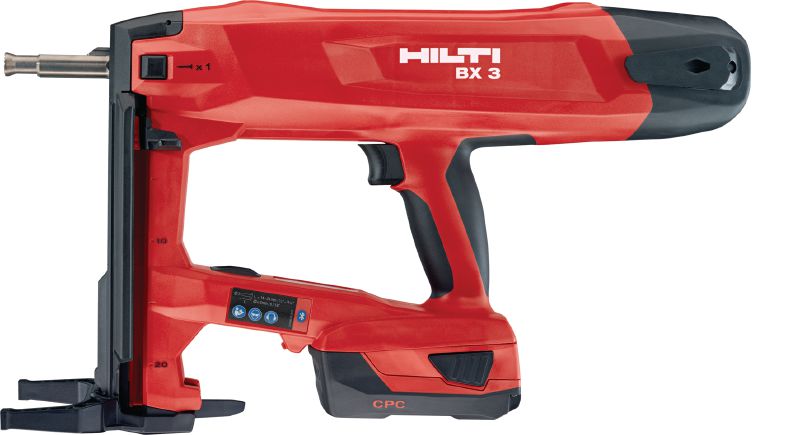

BX 3-ME (02) Cordless fastening tool

Kit BX3 Tool + Concrete Nail X-C (S) #2284702

Configurator
Technical Data
Documents
Features & Applications
Related Products
L109410_v1 (188566)
L109412_v1 (188570)
L081760.tif (76705)
L111524_cropped (191394)
L111506_cropped (191401)
L111462_v1_cropped (191387)
X-ECH-FE MX (83711)

22V cordless nailer for electrical and mechanical applications

  • Dimensions (LxWxH): 473 x 134 x 280 mm
  • Tool body weight: 3.331 kg
  • Fastener length range: 14 - 24 mm

Choose options

Hilti Connect
  • Yes
Pack size
  • 1 pc
 Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
SGD 2,260.00
SGD 2,260.00 / 1 Piece

Technical Data

Dimensions (LxWxH)
473 x 134 x 280 mm
Tool body weight
3.331 kg
Fastener length range
14 - 24 mm
Bluetooth
Yes
Power source type
22 V battery platform
Rated voltage
21.6 V

Documents

Technical information
Operating Instruction
pdf [PDS_T_002_BX] BX 3 Battery-actuated tool - Data Sheet 05/2025, English [ 1.3 MB ]
pdf Direct Fastening Technology Manual, English [ 6 MB ]

Features & Applications

Features

  • Second generation of Hilti’s combustion-free direct fastening technology – for high-quality, more reliable fastening on concrete, steel and some types of solid masonry
  • Combustion-free operation – no gas cans or powder cartridges to store and dispose of
  • Drives up to 800/500/400 fasteners with a single battery charge (depending on B22 battery model - 5.2 Ah, 3.0 Ah or 2.6 Ah)
  • Can be used with collated and single nails, such as threaded studs – magazine capacity of 20 nails
  • Engineered for high productivity – fastening rate of 1.3 nails per second

Applications

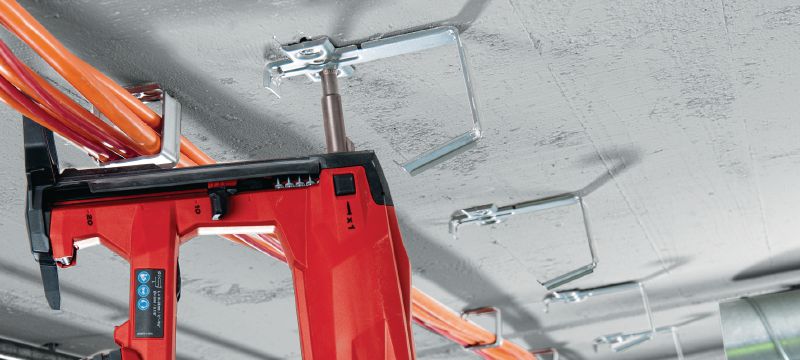

  • Fastening cables and conduits to floors, walls and ceilings – on concrete, solid masonry or steel
  • Fastening various light electrical installations to floors, walls and ceilings on concrete, solid masonry or steel
  • Fastening heating pipes to floors on concrete
  • Suitable for various light-duty fastening applications on concrete, solid masonry or steel
  • Fastening metal stud/track for plasterboard walls to floors, walls and ceilings on concrete, solid masonry or steel – use of the IF nailer nose is recommended
