Electric wall saw for small/medium cutting jobs with cut assistance and on-board control electronics (no e-box)

  • Motor power: 9 kW
  • Blade diameter - range: 600 - 900 mm
  • Min. generator power: 20 kVA

Technical Data

Motor power
9 kW
Blade diameter - range
600 - 900 mm
Min. generator power
20 kVA
Power source
Electric
Max. cutting depth
380 mm
Drive weight
32 kg
A-weighted emission sound pressure level
114.5 dB (A) 1
Drive dimensions (W x L x H)
365 x 400 x 350 mm
Remote control
Wireless
  1. According to the applicable product standard (see the Operating Instruction for more details)

Documents

Features & Applications

Features

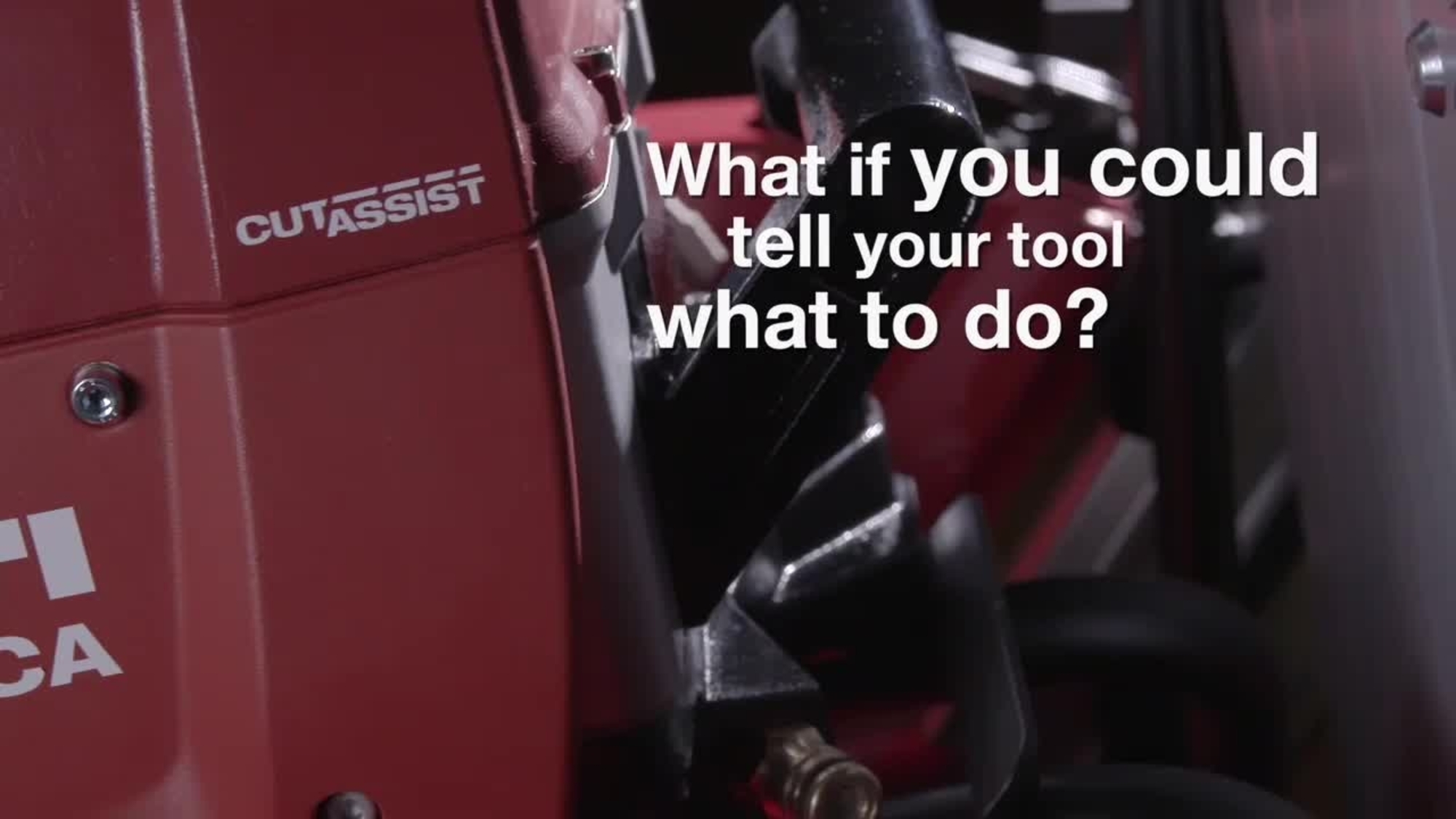

  • Hilti Cut Assist – equips tool for fully automated cutting. Starts when surface is detected, then continuously optimises speed, gear and water flow, even when cutting through rebar. Cut Assist means much higher productivity and more time for other tasks.
  • No external e-box necessary – control electronics integrated on-board make the saw more compact, as well as easier to handle, transport and quicker to set up
  • Cutting depth is displayed in real time on the remote control
  • Wireless remote control
  • High reliability thanks to integrated control electronics and fewer electrical interfaces

Applications

  • Cutting and extending openings for doors and windows, openings in floors, in reinforced concrete, masonry and natural stone
  • Facade and balcony renovation
  • Sawing in tight spaces or where access is difficult

For approval or certificate information, please see individual items.
