PM 20-CGE High-precision plumb and cross line laser

Configurator
Technical Data
Features & Applications
Related Products
L125936_v1 (1932489)
L125936 (1932476)
L142442 (228398)
L142452 (228399)
L142468_cropped (228405)
L142475_cropped (228407)

High-precision green beam combi-laser with 2 queues and 4 points for plumbing, leveling, aligning and squaring

  • Accuracy: ±2 mm at 10 m
  • Max. operating distance (diameter): 40 m (lines), 100 m (lines, with receiver)
  • Maximum operating time: 8 h

Choose options

Product options
Quantity
Packs
Total Pieces
1
You can not see your company prices

Please Log in or register to see your company prices.

Discounted net
Price loading error occured

Please contact us

No products available

Please Contact us to find a solution.

Technical Data

Accuracy
±2 mm at 10 m
Max. operating distance (diameter)
40 m (lines), 100 m (lines, with receiver) 1
Maximum operating time
8 h
Battery type
4 x 1.5 V (AA)
Self-levelling range at room temperature
+/-4° °
Self-levelling time
3 s
Horizontal fan angle
200 °
Vertical fan angle
160 °
IP protection class
IP 54 (EN 60529)
Laser type
Line and point
  1. Operating distance can be significantly affected by site conditions. See operating instructions.

Features & Applications

Features

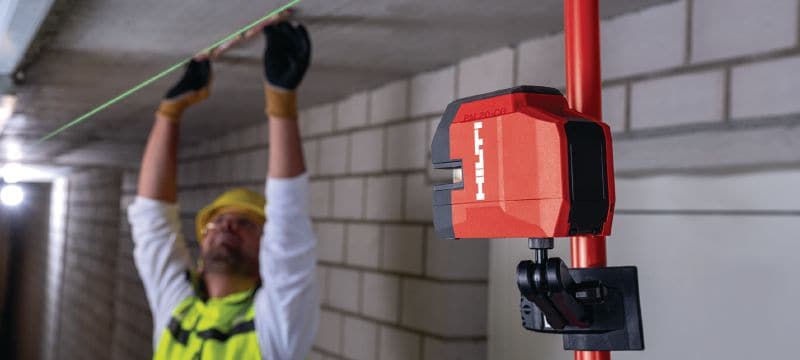

  • Higher laser precision – for leveling and plumbing tasks with strict tolerances, such as lift installation, façade or metal fabrication
  • High-speed layout – compact, self-levelling cross line laser with one-button operation so that you can get started with minimal setup time
  • Better visibility up to 20 m – equipped with green beam for easier use indoors and in bright light
  • Ultimate versatility – laser cross, five dots and slope mode make this line laser level suitable for virtually all alignment and layout work, even on inclines
  • Built for jobsite conditions – IP 54 rated protection against dust and moisture and class 2 laser which requires no special precautionary measures

Applications

  • Vertical alignment of lift rails
  • Checking, transferring and aligning reference points in lift shafts or on façades
  • Leveling and aligning lift doors and façade elements
  • Transferring fastening points from floors to ceilings (laser plumb bob)
  • Transferring reference heights

For approval or certificate information, please see individual items.
