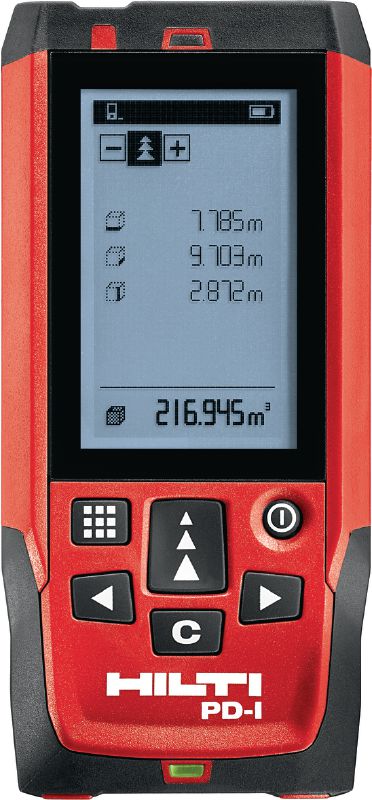

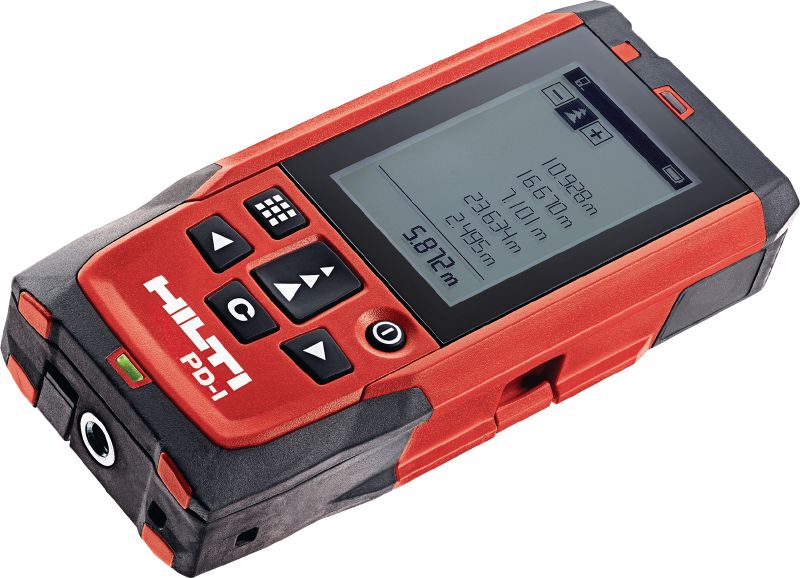

Indoor laser meter for indoor measurements up to 100 m / 330 ft

  • Measuring range: 0 m - 100 m
  • Measurement accuracy: 1.0 mm
  • Measuring functions: Single and continuous measurement, Digital level

Customers also searched for distanceindirectvolumearea or tilt.

Technical Data

Measuring range
0 m - 100 m
Measurement accuracy
1.0 mm
Measuring functions
Single and continuous measurement, Digital level
Calculation functions
Addition, Subtraction, Area, Volume, Painters area, Setting out, Min/max, Timer, Offset, Memory (30x), Trapezoid (2x), Pythagoras (3x), Indirect measurement (3x)
Data memory
Last 30 measurements, Calculation results with graphics
Battery type
2 x 1.5 V (AAA)
Laser class
<1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
IP protection class
IP 65 (EN 60529)
Interface
none

Documents

Features & Applications

Features

  • No minimum distance limit – enables measurements even in tight spaces
  • Display with backlight illumination to read results even in dark environments
  • Rugged and durable to resist hard jobsite environments
  • Built-in 360 degree tilt sensor and smart estimation functions support measurements in challenging situations
  • LEDs provide clear identification of the measuring reference to help prevent mistakes

Applications

  • Measuring quickly and safely in places where access is difficult
  • Checking parallels and offsets using the min/max function
  • Measuring the lengths of cables and pipes
  • Determining the surface area of walls, ceilings and floors for painting etc.
  • Volume calculations for planning ventilation and heating systems

For approval or certificate information, please see individual items.
