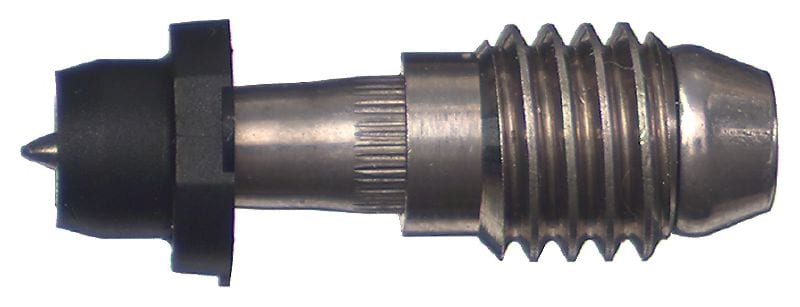

X-CR M8 P8 Threaded studs
Threaded stud for multi-purpose fastenings on steel (8 mm washer)
- Base materials: Steel
- Minimum thickness of base material (steel): 6 mm
- Corrosion protection: Equivalent to A4 (316) stainless steel
premium
Customers also searched for checker plate.
Choose options
Quantity
Packs
Total Pieces
1
Discounted net
Technical Data
Base materials
Steel
Minimum thickness of base material (steel)
6 mm
Corrosion protection
Equivalent to A4 (316) stainless steel
Environmental conditions
Dry indoor, Indoor with temporary condensation, Outdoor temporary applications, Outdoor with low pollution, Outdoor with moderate concentration of pollution, Coastal areas, Outdoor, areas with heavy industrial pollution
Material
Carbon steel
Thread diameter
8 mm
Point type
Ballistic point
Approvals
ABS, ICC ESR-2347, LR
For use with (tools)
DX 2, DX 351
Product class
Premium
Documents
pdf LR 97 00078(E3) X-CR 2013-05-29, English [ 1 MB ]
Features & Applications
Features
- Corrosion-resistant fastener, ideal for fastening directly to steel
- Suitable for marine, offshore, petrochemical, power plant applications, etc.
- Portable, cordless system eliminates the need for long electric extension cords
Applications

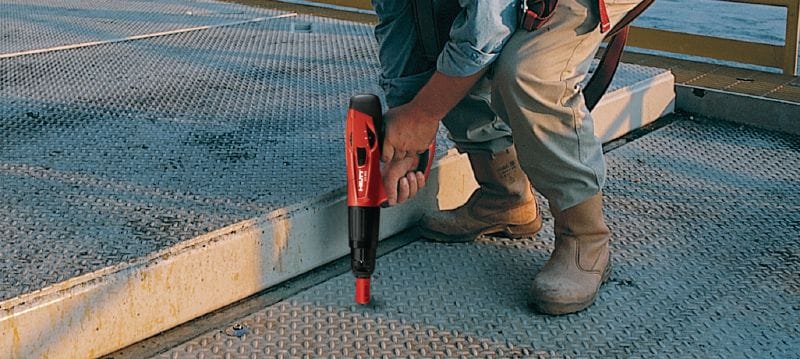

- Fastening gratings and checker plate in corrosive environments such as marine, offshore, petrochemical, power plants, etc.
- Light-duty electrical and mechanical fastening
For approval or certificate information, please see individual items.
