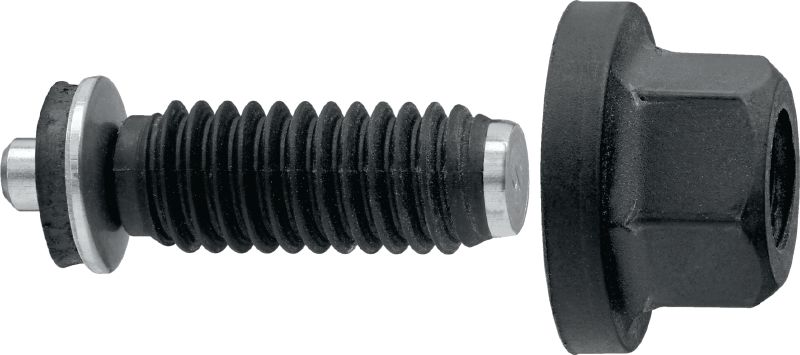

X-BT-MF Threaded studs

Hilti X-BT MF threaded stud for fastening to steel

Threaded stud for multi-purpose fastenings on steel in mildly corrosive environments

Base materials: Steel
Minimum thickness of base material (steel): 8 mm
Corrosion protection: Stainless steel A2

ultimate

Customers also searched for Composite studs, Stainless stud fasteners, Stainless stud nails, Blunt tip studs or Multi-fastening studs.

Technical Data

Base materials

Steel

Minimum thickness of base material (steel)

8 mm

Corrosion protection

Stainless steel A2

Environmental conditions

Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications

Material

Carbon steel, Glass-fibre reinforced polyamide

Thread diameter

10 mm

Length

31 mm

Point type

Blunt tip

Approvals

ICC ESR-2347

Product class

Ultimate

Documents

Features & Applications

Features

The X-BT-MF is easy and reliable to use – requires no electric supply cords or heavy equipment for installation
Suitable for use in mildly corrosive environments (C3)
Easy installation in tight spaces
Eliminates the need for refinishing work
Compatible with the Hilti MQ system

Applications

Fastening cable ladders using channels or hold-down/expansion guide clips
Fastening cable trays and cable runs using channels or conduit clips

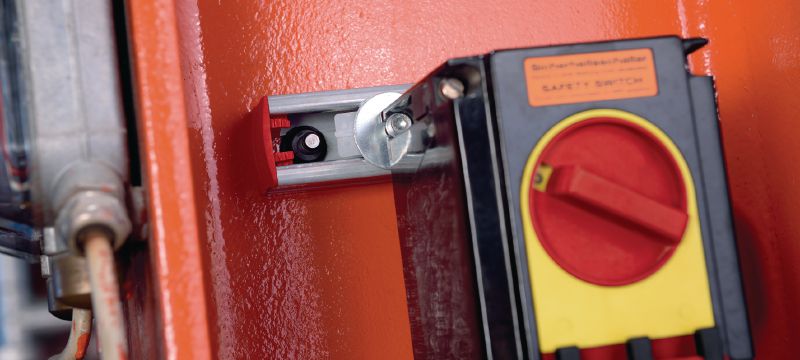

Fastening junction boxes, switchgear and instrumentation panels directly or using channels
Fastening light fixtures, signage etc.

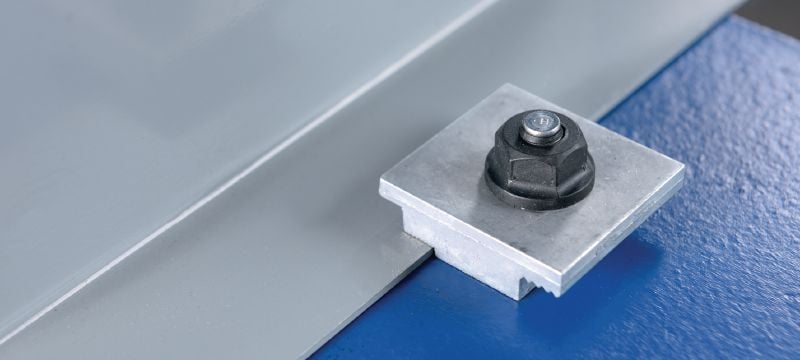

Fastening modular support systems to steel, base plates to steel, struts to steel

For approval or certificate information, please see individual items.
