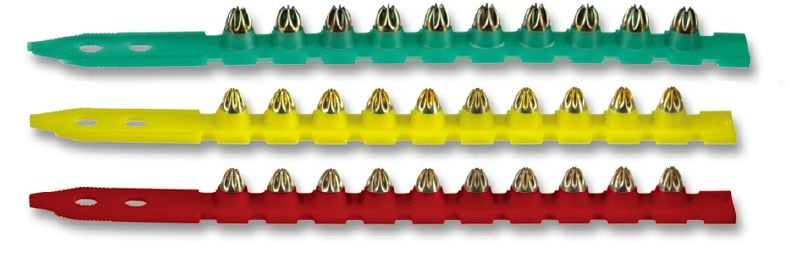

Collated cartridges for use with powder actuated nailers

  • For use with (tools): DX 2, DX 351, DX 351 CT, DX 351 M/E, DX 351 MX 27, DX 351 MX 32, DX 36, DX 450, DX 460 F10, DX 460 F8, DX 460 F8S12, DX 460 FP8, DX 460 GR, DX 460 IE, DX 460 IE-XL, DX 460 MX, DX 460 MX, DX 460 SM, DX 460 SR, DX 462 CM, DX 462 CM, DX 462 F8, DX 462 F8S12, DX 5 F10, DX 5 F8, DX 5 F8S12, DX 5 GR, DX 5 IE, DX 5 IE-XL, DX 5 MX, DX 5 MX, DX 5 SM, DX A40, DX A41
  • Cartridge type: .27 calibre short
  • Approvals: CE, CIP, PTB

Customers also searched for red cartridgeyellow cartridge or black cartridge.

Technical Data

For use with (tools)
DX 2, DX 351, DX 351 CT, DX 351 M/E, DX 351 MX 27, DX 351 MX 32, DX 36, DX 450, DX 460 F10, DX 460 F8, DX 460 F8S12, DX 460 FP8, DX 460 GR, DX 460 IE, DX 460 IE-XL, DX 460 MX, DX 460 MX, DX 460 SM, DX 460 SR, DX 462 CM, DX 462 CM, DX 462 F8, DX 462 F8S12, DX 5 F10, DX 5 F8, DX 5 F8S12, DX 5 GR, DX 5 IE, DX 5 IE-XL, DX 5 MX, DX 5 MX, DX 5 SM, DX A40, DX A41
Cartridge type
.27 calibre short
Approvals
CE, CIP, PTB
Cartridge strip capacity
10
Storage temperature - min.
5 °C
Storage temperature - max
25 °C

Documents

Features & Applications

Features

  • Part of the Hilti DX range of high-performance, reliable and versatile powder actuated fastening solutions
  • Hilti cartridges are designed specifically for use with Hilti powder actuated tools as part of a matched tolerance system

Applications

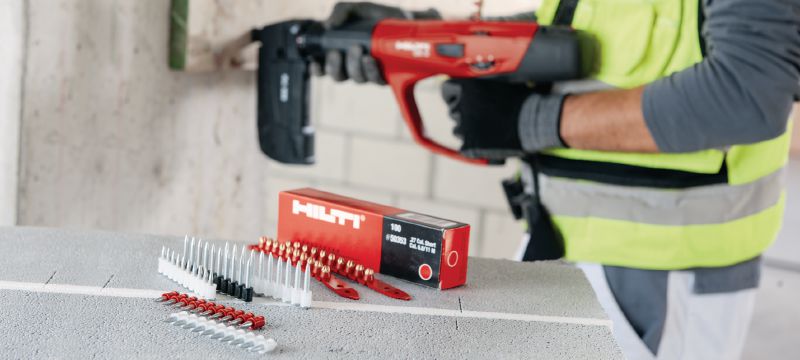

  • Powder actuated fastening on steel, concrete and sand-lime block
  • Fastening nails, studs and elements

For approval or certificate information, please see individual items.
