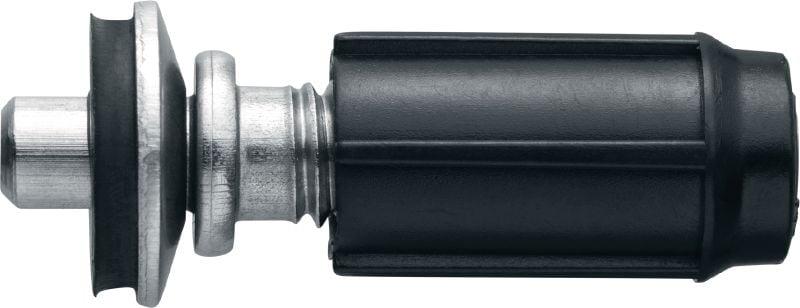

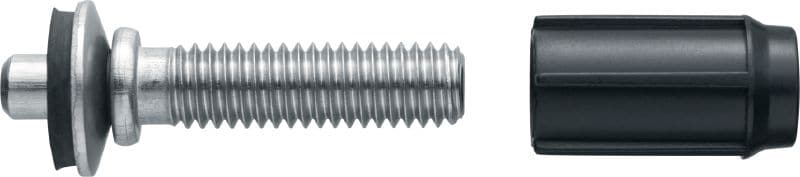

X-BT M6 Threaded studs

Threaded stud for multi-purpose fastenings on steel in highly corrosive environments

Base materials: Steel, Stainless steel, Cast iron
Minimum thickness of base material (steel): 8 mm
Corrosion protection: Stainless steel A4(316) or equivalent

ultimate

Technical Data

Base materials

Steel, Stainless steel, Cast iron

Minimum thickness of base material (steel)

8 mm

Corrosion protection

Stainless steel A4(316) or equivalent

Environmental conditions

Outdoor, areas with heavy industrial pollution, Coastal areas, Outdoor with moderate concentration of pollution, Outdoor with low pollution, Indoor with temporary condensation, Dry indoor, Outdoor temporary applications

Material

Duplex stainless steel (1.4462)

Thread diameter

6 mm

Point type

Blunt tip

Approvals

ABS, ICC-ES, null, UL

Product class

Ultimate

Documents

Features & Applications

Features

No reworking of base steel – corrosion protection remains intact
Versatile – suitable for use on most standard and high-strength construction steel
Secure – creates a true weld to the base material for an extremely strong hold and high loading capacity
Portable, cordless system – eliminates the need for long electric supply cords
Fast – ideal for fastening directly to coated or treated steel

Applications

Fastening cable trays, channels, struts, light-duty electrical applications (T-bars, instrumentation panels, junction boxes), outfitting and much more
Fastening modular support systems to steel, base plates to steel, struts to steel
Fastenings to fire coated (PFP) beams
Designed for use on steel thicknesses of 8 mm (5/16") and above

For approval or certificate information, please see individual items.
